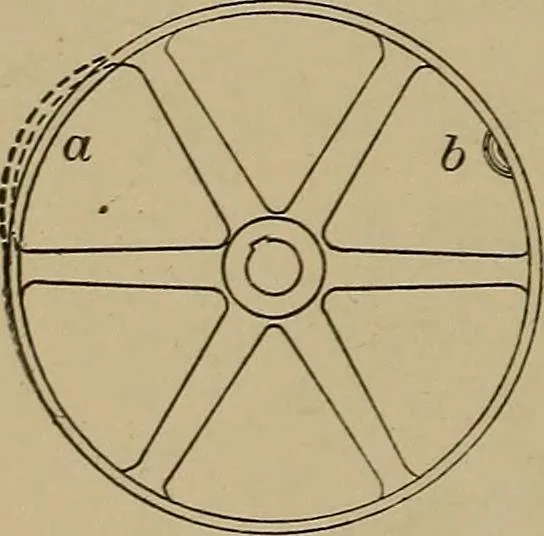

n the arms may be consideredF,G 4 ______ as a beam fastened at both ends and uniformly loadedthroughout its whole lengthequal to that amount of cen-trifugal force in the rimwhich is resisted by thearms; therefore, the rims oflarge pulleys should alwaysbe ribbed on the inside.(See cross-section of… … FLY-WHEELS. 359 and is very innocent as long as the pulley is standing still, butimagine what stress it will produce on the rim of a 6-foot pulleyrunning at a rim speed of 80 feet per second.Solution: cf= ^JiA = 331 pounds.3 X 32.2 Thus, when that pulley is running at a speed of 80 feet persecond…
