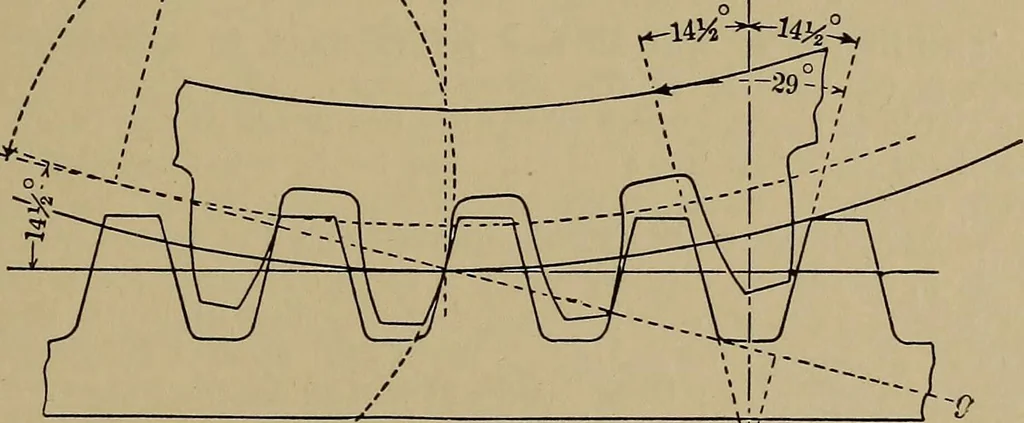

principles, and serves well for thatpurpose, but would be inconvenient to use in actual construction of gear teeth. Inactual v/ork one tooth is carefully constructed, and templets and cutters are madeand used, as was explained for Cycloid Gears, pa~e 385. GEAR TEETH. 389 when a gear has less than… … Fig. 6. Involute Teeth (Cast.) the teeth to make them clear in the rack. In interchangeablesets of cut involute gears it is customary to cut the rack with acutter shaped for a gear of 135 teeth. This will make the teethin the rack slightly curved instead of straight, as shown in Fig. 6,and this…
