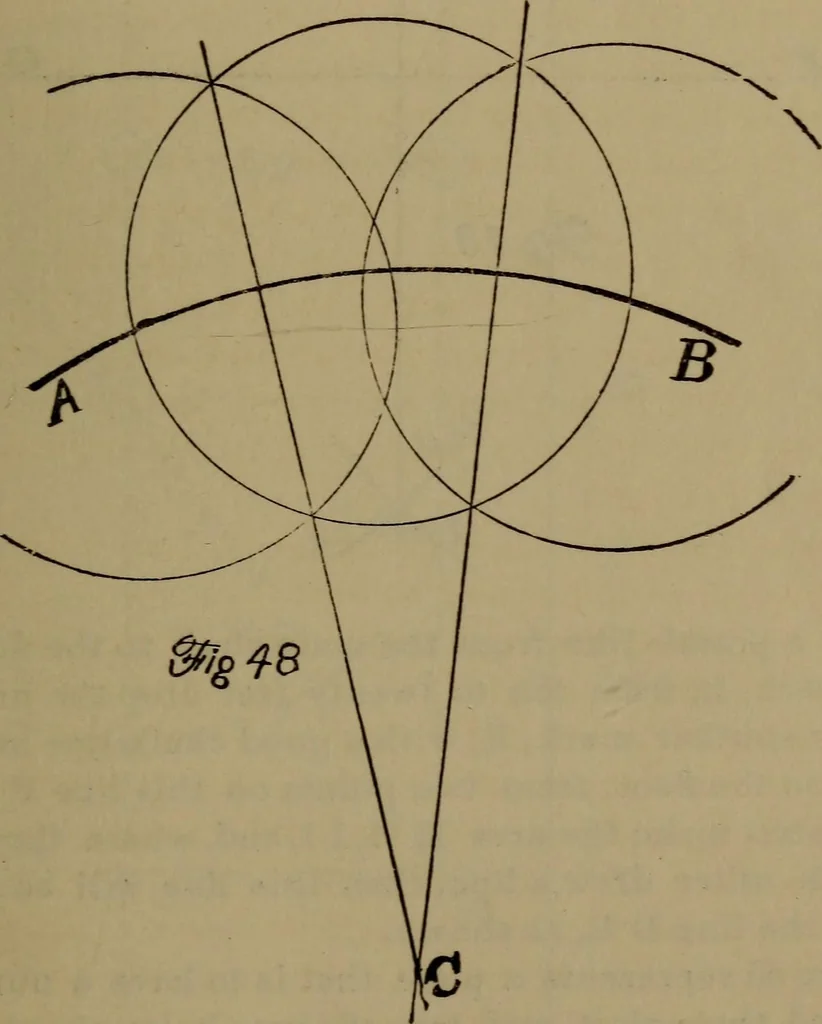

ied by theradius (4%) = 2.775, then twice this sum = 5.550 for theanswer, as shown. THE MACHINIST AND TOOT, MAKERS INSTRUCTOR. 61 Figure 48 shows a method of finding the size of a pulley(or anything similar) from a piece of the broken rim A B.Place the rim on a piece of paper and make the arc of a… … 62 THE MACHINIST AND TOCXL MAKERS INSTRUCTOR. Figure 49 shows a method of setting a machine at rightangles to the main shaft.
