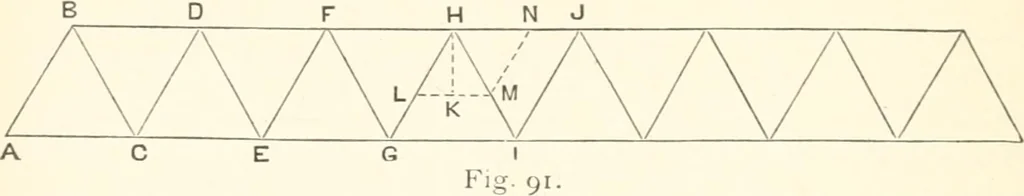

ensions on the lower chord, and thetensions on the lower chord become compressions on the topchord, in which case there is no compression in the end panels ofthe upper chord ; and the end section of the chord, and the endpost, may be omitted, unless required for lateral bracing. The Warren ok… … ceding cases, or 45,000 pounds. Moreover, the strain changes itscharacter at each apex ; being first compression, and then ten-sion ; A B, C D, etc., being braces, and B C, D E, etc., ties. Weight at Foot of Tie, or Top of Brace. I orH 22.500G or F 67.500E orD 112.500C or B 157,500 Resulting Strain…
