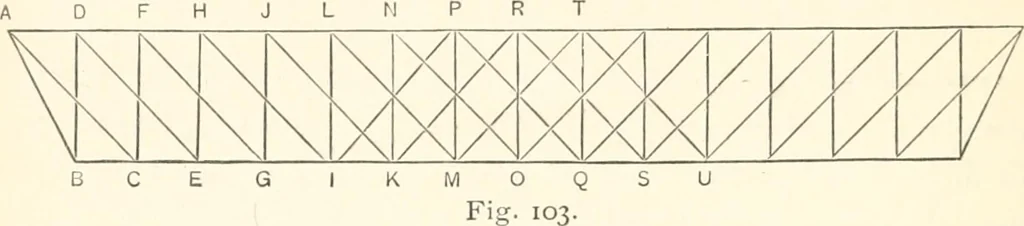

e stringers ; Fig 6, a planof the same ; Fig 7, side view of lower end of centre post ;Fig. 8, plan of washer on upper side of top chord ; Fig. 9, lower 222 MANUAL FOR RAILROAD ENGINEERS. end of first post from the abutment, and Fig. 10, seat for foot ofpost ; Fig. ii, transverse section through… … The strains upon the different parts, and the dimensions of theseveral members are given by the builders as follows : — Tension Bars. No. of Bar. Strain. Area. Size. AB 93,000 8.00 2 Bars 2x2 A C 103,000 9.O5 2 2g X 2 ?y D E 89,000 8.00 2 2X2 F G 74,000 7-03 2 1 a A l8 II I 59,000 6.12 2 , 3 v T 3…
