Manual for railroad engineers and engineering students : containing the rules and tables needed for the location, construction, and equipment of railroads as built in the United States (1883)
Vose, George L. (George Leonard), 1831-1910 · Boston : Lee and Shepard · leaf 279

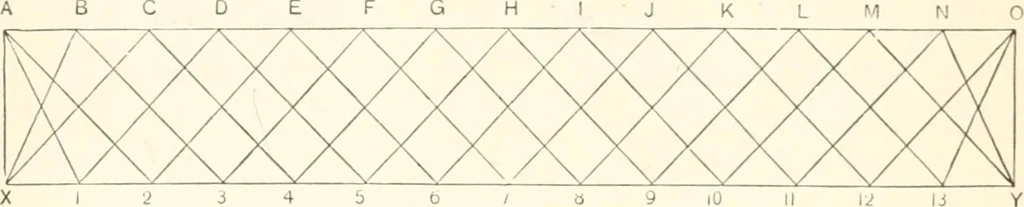

ENGINEERS. is an under side view of the lower chord splice, showing the dis-position of rivets, the cross girder D, and diagonal I. Fig. 10 isan elevation of the same, showing the splice of the vertical plate.The method of computation for the strains upon the severalmembers, as given by Mr Hilton,… … Fig. 111. of triangulation, and each system is treated independently of theothers. Thus, a load placed at any apex is transmitted to theabutments by the members of the system to which that apex be-longs, without direct aid from the members of any other system.The members of these systems are…
Railroad engineering
