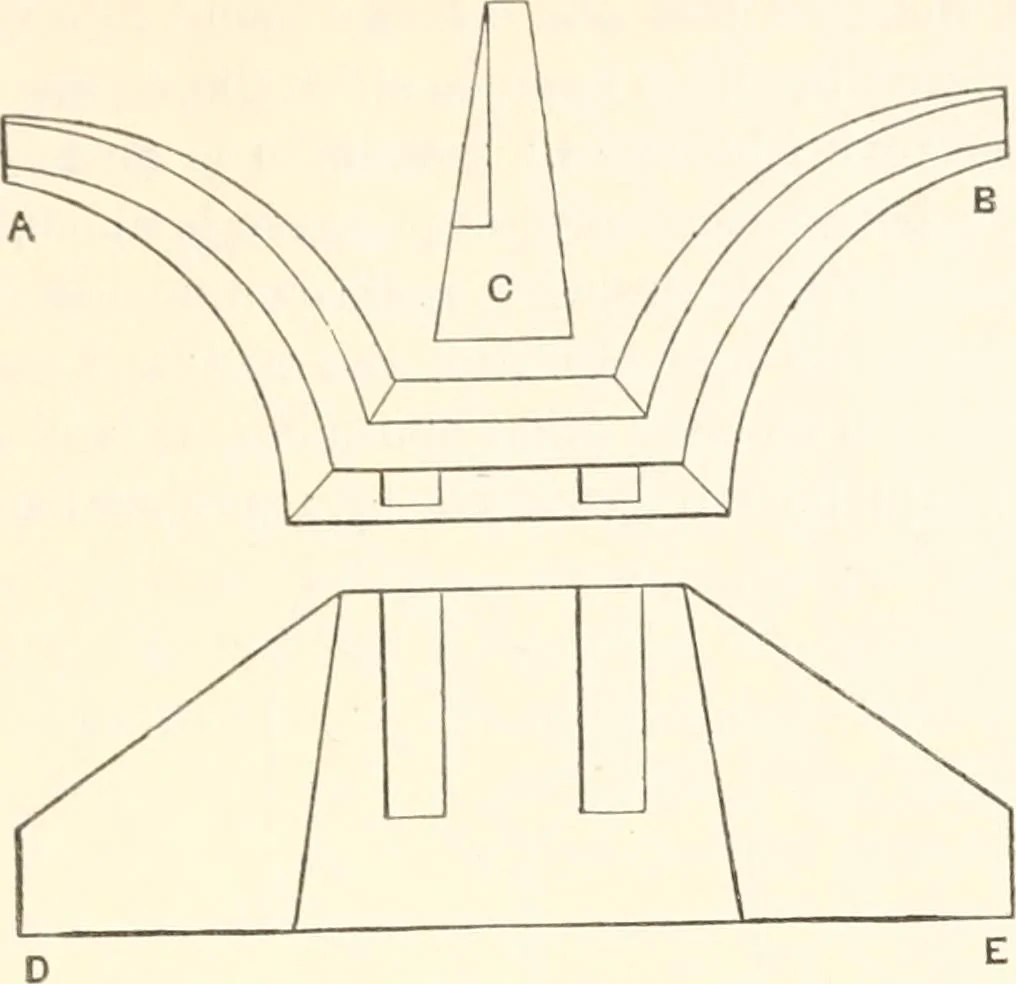

evation, at D E, and section C, Fig. 147, becomesthe LJ abutment, Fig. 148, or, by moving the wings on to thecentre line, takes the form of the ~f abutment, Fig. 149. Thecurved wing, being arched, requires a little less thickness, but atthe same time is longer. The slope of the wings may be… … Fig. 147. ^ B -ir
