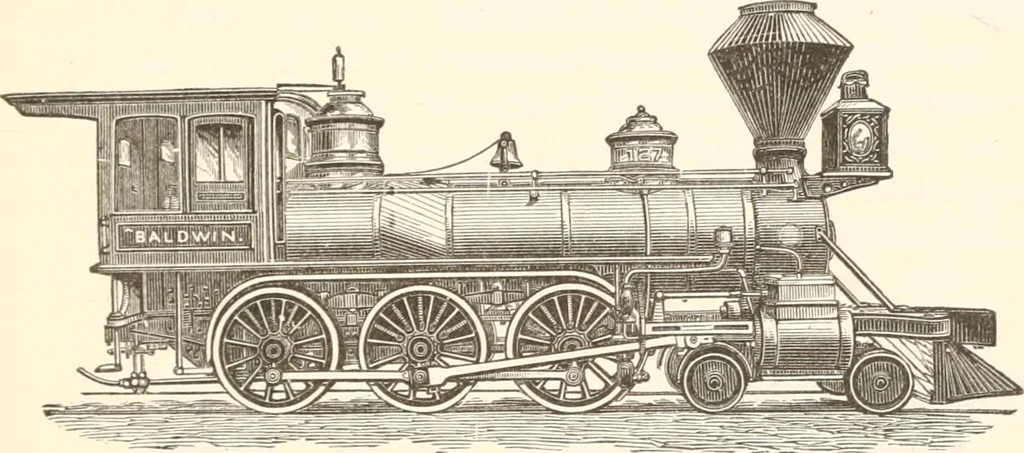

th a load of 700 passengers, over 60feet grades, at 14 miles an hour. Plate XXX. represents side and end views of the Mogul, asbuilt by the Baldwin Locomotive Works, the dimensions beingas follows : Cylinders, 17 inches in diameter and 24 in stroke.Driving wheels, 54 inches. Truck wheels, 30… … Fig. 162.inches diameter. Tube surface, 917 square feet. The weight ofthis engine, In working order, is 70,000 pounds, of which 61,000pounds are on the drivers and 9,000 on the truck. The tender,loaded, weighs 40,000 pounds. The total wheel base is 21 10.The driving-wheel base is 14 6, the front…
