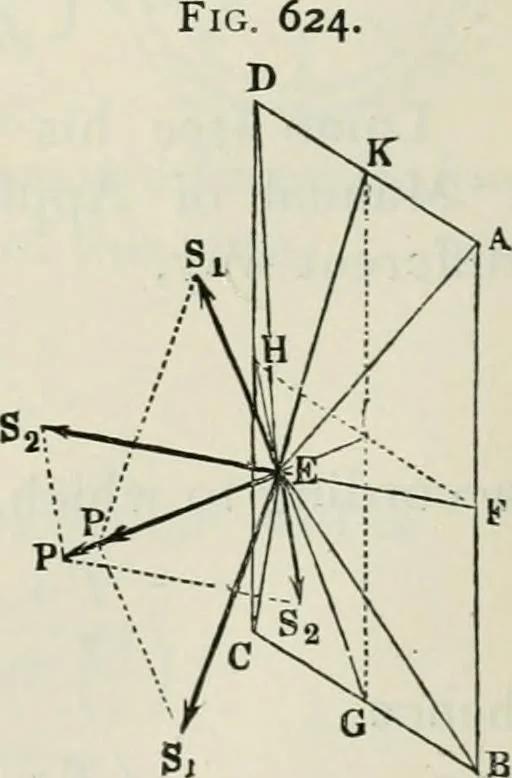

roidal segments, and the question arises as to whatthickness is to be given to these partsof the boiler. Suppose the boiler inform a polyhedron, and assume thatit is limited by three-sided plane sur-faces, which unite to make a cornerwith four edges, as shown at E, Fig.624; suppose, further, this… … §4IO.] STEAM-GENERATING AFPAKATUS. 165 This force can be decomposed into two parts P, and P^,of which the one balances the tensions 5,, >S,, of the surfacesA D E and B C E. and the other the tensions S^, 5,, of thesurfaces ABE and CD E. Hence P^ = a^ S^ and P^ = a^_ S„, if o, and o:^ indicate…
