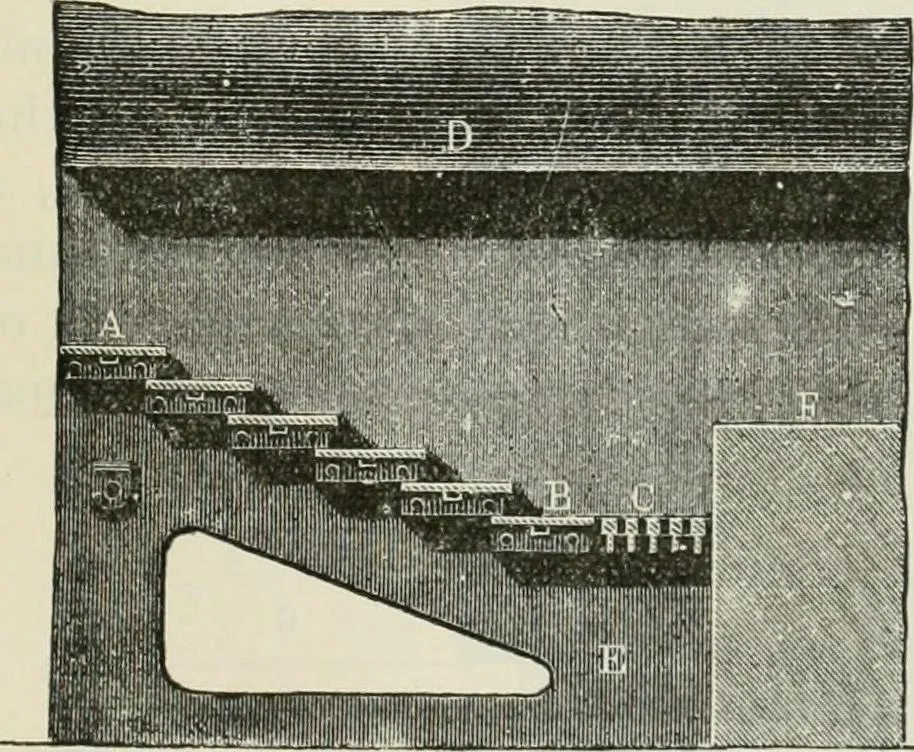

ot been always foundto be beneficial. Another means for the combustion of srnok^ consists in the application of aFig. 634. ^ . , ,^ grate with steps (Fr. grilles a gradins; Ger. Trcppenrost). This is distinguished from the common grate in that the grate bars are replaced by iron plates of about… … l8o HEAT, STEAM, AND STEAM ENGINES. [§417- step grate is shown in Fig. 634. A B is the grate with stepsconsisting of six plates, C a short grate with bars, D thesteam boiler, E the ashpit, and Fihe fire bridge. Grates with steps are preferably used for fires of peat,brown coal, and the poorer sorts…
