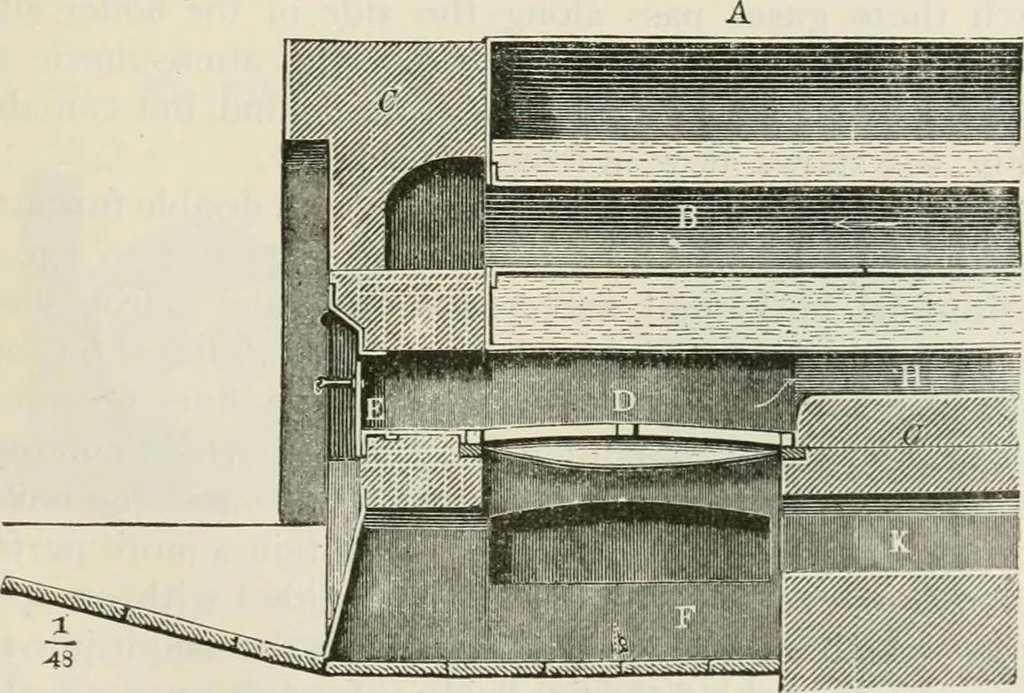

, another door ordamper (Fr. registre; Ger. Schieber) is used for the pur-pose of regulating the fire, and so as to be able tocompletely close the furnace. Besides this, the whole con-struction should be surrounded by a strong wall. §4-18.—Construction of Boiler.—The principal arrange- FiG. 635. … l82 HEAT, STEAM, AND STEAM ENGINES. [§418. ment of a boiler construction with external furnace is shownin Fig. 635 in longitudinal, and in Fig. 636 in cross-section.Here A is the steam boiler with two flues B B ; further, C isthe brickwork, D the grate, E the furnace door, F the ash-pit, G that…
