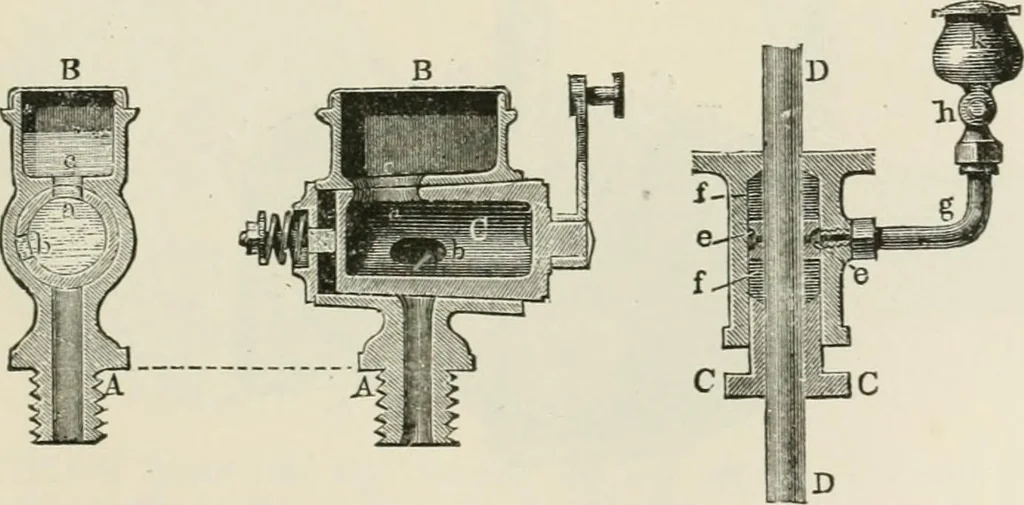

a Stuffing box A A with screws B B, by means of which thegland can be pressed down upon the packing. Both the cylinder and stuffing-box covers have a cavityfor the reception of oil, and when hemp packing is used Fig. 689. Fig. 690. … for the piston, one or more oil funnels are set in the cyl-inder cover. The arrangement of such an oil funnel isshown in Fig. 689. The apparatus is screwed at A into 264 HEAT, STEAM, AND STEAM ENGINES. [§443- the cylinder cover; B is the oil cup, and (^ is a cock withtwo holes a and b. \i the hole…
