A manual of the mechanics of engineering and of the construction of machines. Designed as a text-book for technical schools and colleges, and for the use of engineers, architects, etc. (1878)
Weisbach, Julius Ludwig, 1806-1871, Du Bois, A. Jay (Augustus Jay), 1849-1915, Buel, Richard H. (Richard Hooker), b. 1842 · New York. J. Wiley & Sons, 1878- · leaf 294

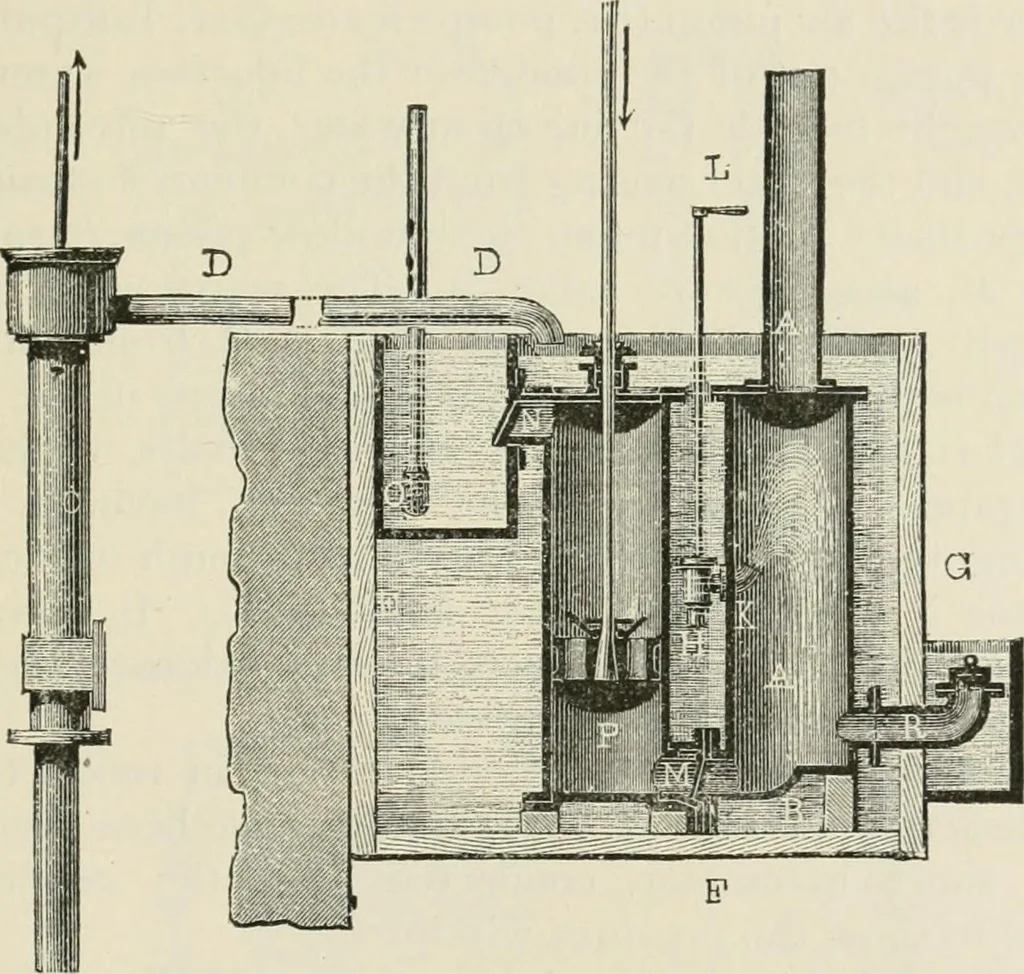

h is piercedwith a number of small holes through which the water is § 450.] THE STEAM EXGINE. 2«I forced in jets into B C. Tins water is warmed by thesteam, and most of it passes throiig-h C to the feed pump,which forces it into the boiler. The surphis water flowsthroug-h the pipe F G H, which… … D, D . . . and falls from one plate to the next lower, so thatits temperature is raised at least 70 by the steam whichenters at B and departs at E. The condenser, which is designed to condense thegreater part of the waste steam, is a cast-iron vessel A B,Fig. 713, surrounded externally by cold…
Mechanics, Applied · Mechanical engineering
