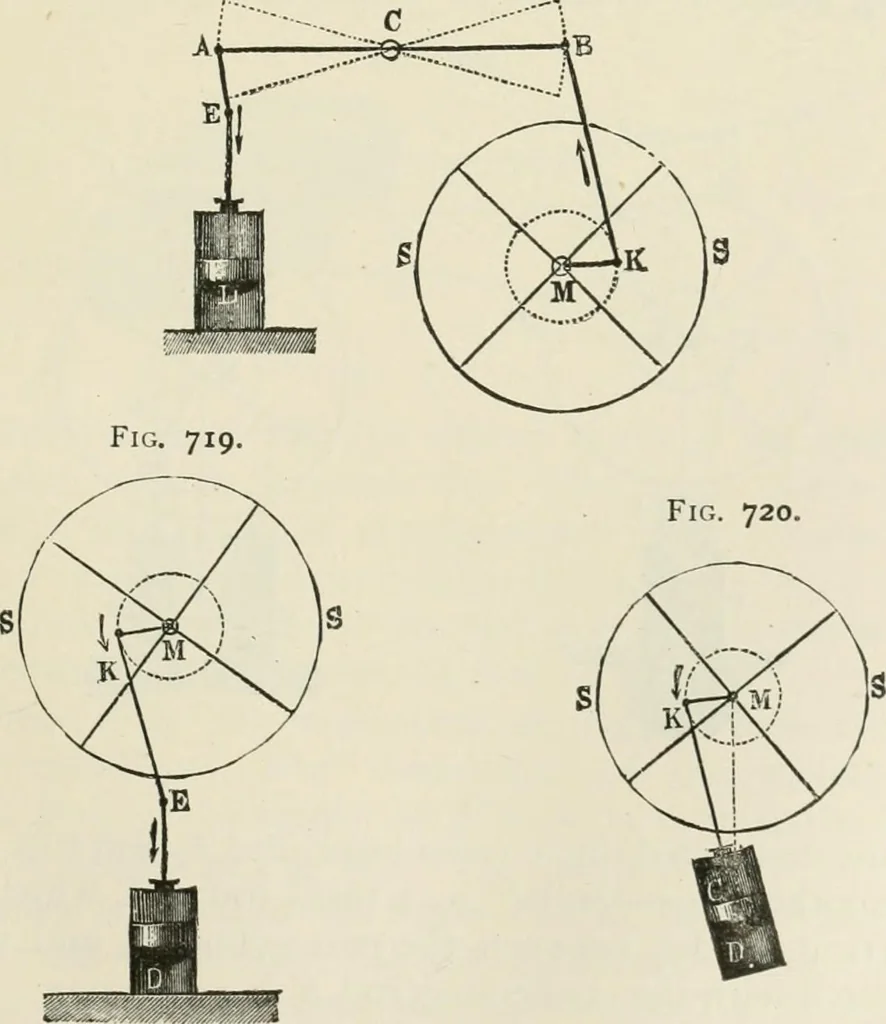

prolonged piston rod D F, another piston Fof a pump orblowing engine. To prevent irregularities of motion, acrank rod EK and crank MK impart motion to a fly-wheel 5 5 on the shaft MN. Fig. 718 shows a double-acting engine with working beam and rotary motion. Itis therefore indirect acting. M K is… … 288 HEAT, STEAM, AND STEAM ENGINES. V% 453- Fig. 719 is an indirect-acting engine, double acting, with-out balance beam. Fig. 720 the same, without connectingrod, and the cylinder therefore oscillating. In order that the piston rod in Figs. 718, 719, and 720may move in a vertical line, there are at…
