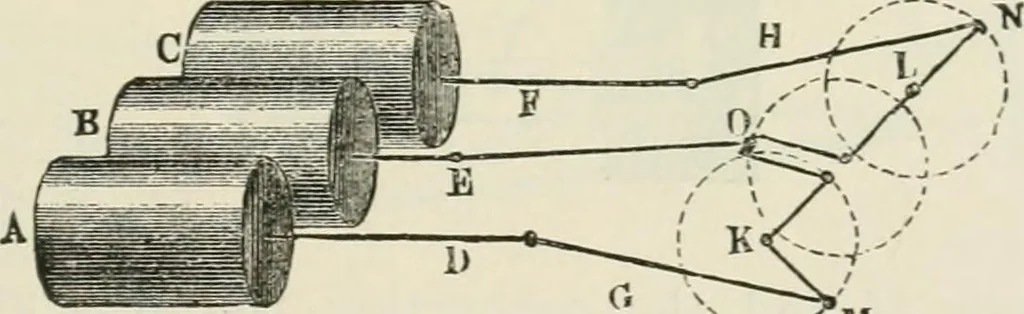

Fig. 724. … —-^M with fresh steam, while the others A and C are operatedby steam working expansively. The three piston rodsZ>, E, E oi this machine are connected by the rods G, Hand EO with the three cranks of the shaft KL. Theouter crank pins J/,and iVare 90° apart, while the middleone O makes an angle…
