A manual of the mechanics of engineering and of the construction of machines. Designed as a text-book for technical schools and colleges, and for the use of engineers, architects, etc. (1878)
Weisbach, Julius Ludwig, 1806-1871, Du Bois, A. Jay (Augustus Jay), 1849-1915, Buel, Richard H. (Richard Hooker), b. 1842 · New York. J. Wiley & Sons, 1878- · leaf 310

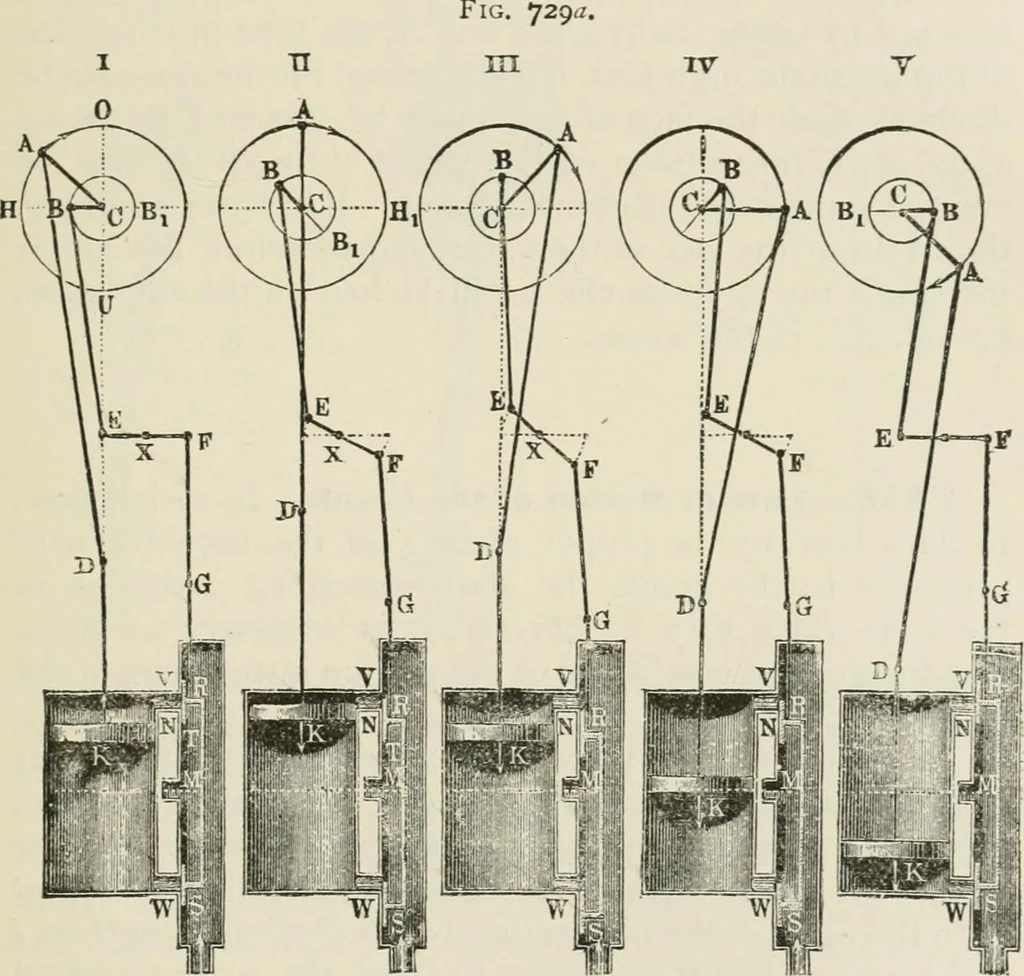

later,at the highest position of the slide valve, both ports will becompletely open, and the descent of the valve will again § 457.] THE STEAM EAGINE. 297 gradually close them, until finally the valve reaches theposition I., which is the beginning of a new stroke. If, now, the slide valve is to… … when the piston is in those positions. The middle positionof the slide valve must, therefoi-e, be reached somewhatbefore the highest and lowest position of the piston. Butthis highest and lowest position of the piston will not thencorrespond to the middle position of the slide valve, and,finally,…
Mechanics, Applied · Mechanical engineering
