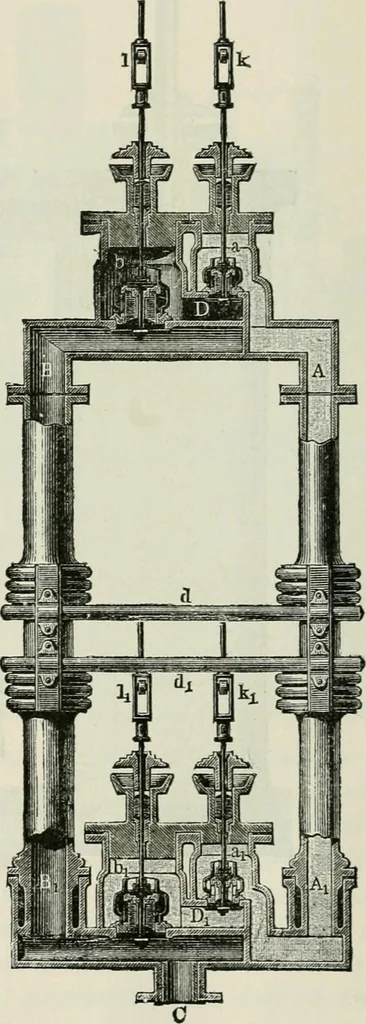

ust steam passesthrough D and b and B j5, Cto the condenser. The twoupper valves a and b are at-tached to two-armed levers kand /, the two lower to one-armed levers k\ and Z^, andthese levers are united by rodsh, i, //,, i^ with the two shaftsd and <^„ h and /, to d^, and h^and i to d. These… … § 464.] THE STEAM ENGINE. 321 position shown in the figures, the piston K is at the top ofits stroke. The tappet E has raised the lever e and turnedthe shaft d through a certain angle from right to left. Bythis the weight G is raised, /-, and therefore a^, by meansof /^,, as also b, by means of i,…
