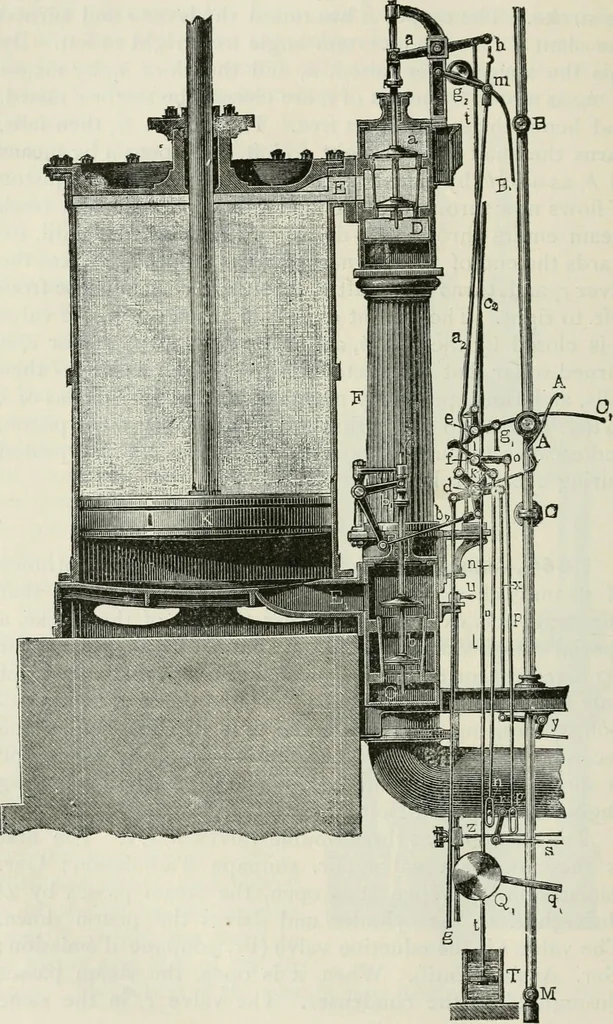

742 and 743, which represent a pumpingengine by Hick and Bolton. The machine has three double valves, a, b, c. The firstis the admission valve (Fr. soupape dadmission ; Ger.Einlassventil). When it is open, the steam passes by Dthrough E to the cvlinder and drives the piston down.The valve b is the… … § 464-] THE STEAM ENGINE. 323 chamber with a, opens when the piston K\% raised by acounterweight, in order that the steam above it may passby E FE^ around beneath the piston. Since thus there is Fig. 743.
