A manual of the mechanics of engineering and of the construction of machines. Designed as a text-book for technical schools and colleges, and for the use of engineers, architects, etc. (1878)

Weisbach, Julius Ludwig, 1806-1871, Du Bois, A. Jay (Augustus Jay), 1849-1915, Buel, Richard H. (Richard Hooker), b. 1842 · New York. J. Wiley & Sons, 1878- · leaf 358

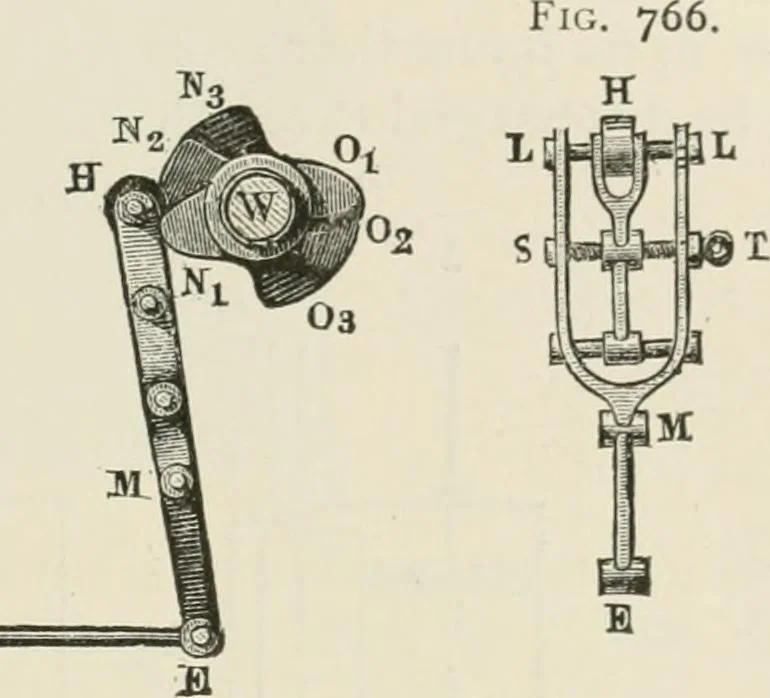

An illustration from A manual of the mechanics of engineering and of the construction of machines. Designed as a text-book for technical schools and colleges, and for the use of engineers, architects, etc., 1878, leaf 358 — opened by means of the angle lever B CD, which is workedby the rod D E attached to the lever EH turning about M.This lever is set in motion by double cams, yV, — 0^,N„ — O^,iVj — O^, upon the fly-wheel shaft. The friction wheel H atthe end of the lever E H can be moved, by means of thescrew .S 7^,…
