A manual of the mechanics of engineering and of the construction of machines. Designed as a text-book for technical schools and colleges, and for the use of engineers, architects, etc. (1878)
Weisbach, Julius Ludwig, 1806-1871, Du Bois, A. Jay (Augustus Jay), 1849-1915, Buel, Richard H. (Richard Hooker), b. 1842 · New York. J. Wiley & Sons, 1878- · leaf 360

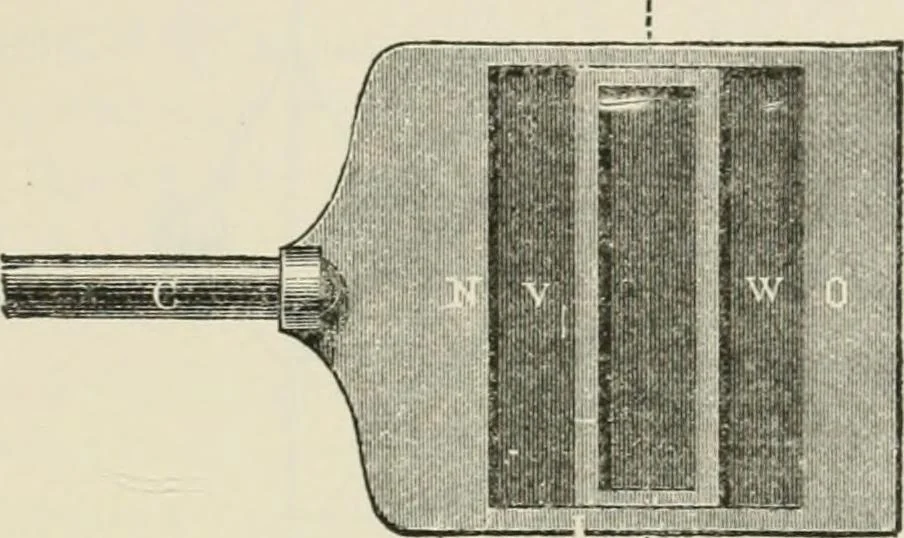

In Fig. 768 we have the arrangement of Adams equili-brium slide with such a movable seat. RS\^ the slide moved § 473-] THE STEAM ENGINE. 347 by the rod AB, and NO the movable seat moved by therod CN. Fig. 769 shows the form of movable slide seat Fit;. 769. … N O, which is set in motion by a separate eccentric. (See Polytechn. Centralblatt, Jahrgang 1867, or The En-gineer, October i8th, 1867.) § 4-73.—Corliss Steam Engine.—The cut-ofTof the Cor-liss steam engine is peculiar. In this machine, the steamdoes not leave the cylinder by the same way by which…
