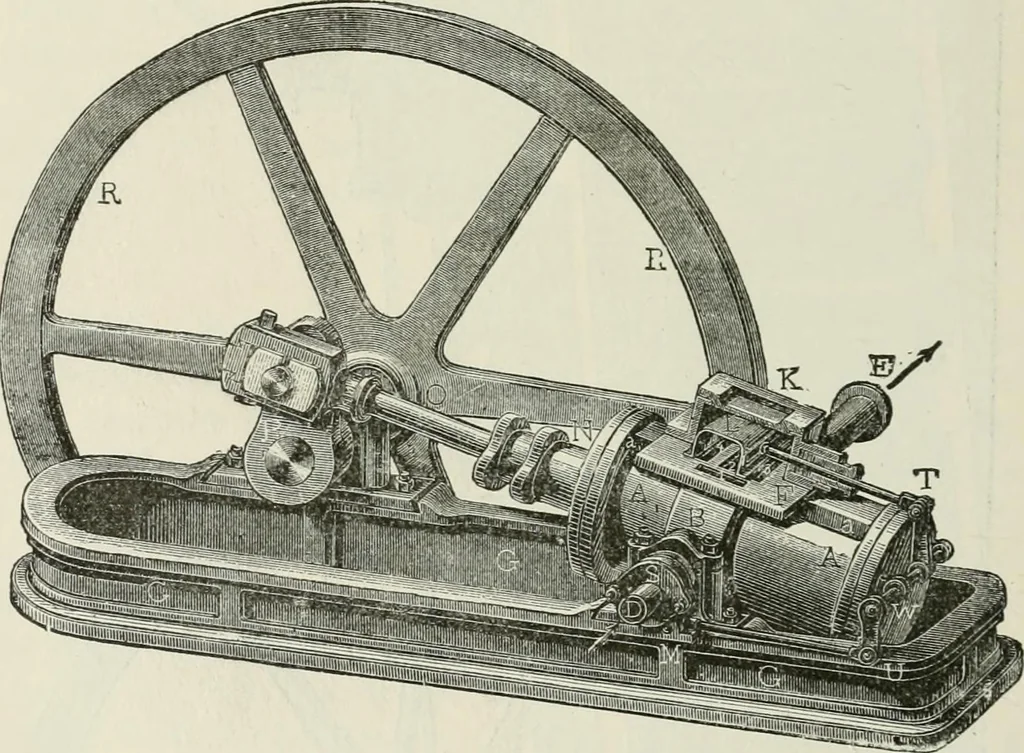

58 HEA T, STEAM, AND STEAM ENGINES. L§ 477. (9, P, and Q, and the levers R and T. We also see in thefigure the crank [Fand connecting- rod X, as also the fly-wheel Y F, by means of which the reciprocating motion ofthe piston rod is converted into a nearly uniform motion ofrotation. (See Practical… … Hochdruckdampfmaschine, von Alban, Rostock, etc.)The cylinder A A has two hollow cast trunnions, restingin ordinary pillow blocks, as B, bolted to a frame G G G.The pipes D and E, the former of which brings and thelatter of which carries off the steam, communicate with thehollow trunnions and pass…
