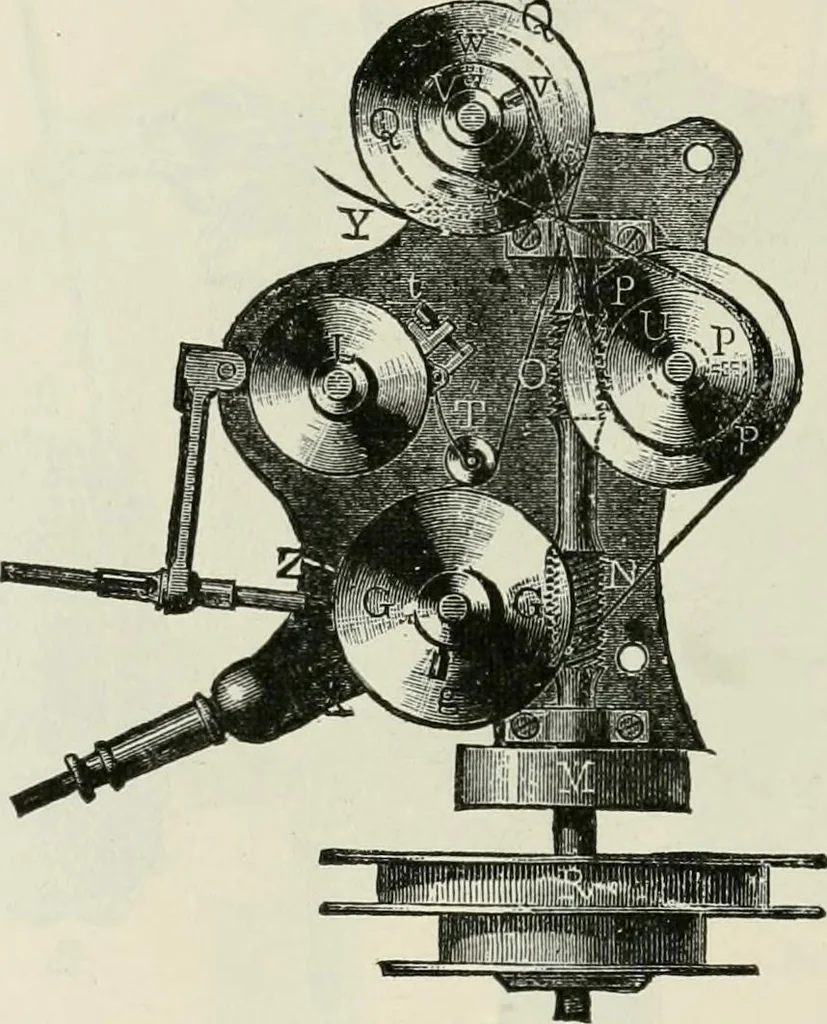

An illustration from A manual of the mechanics of engineering and of the construction of machines. Designed as a text-book for technical schools and colleges, and for the use of engineers, architects, etc., 1878, leaf 417 — 404 HEAT, STEAM, AND STEAM ENGINES. [§ 492. caused by the piston rod of the engine, by means of thestring SR and the drum RR. Since this drum is thusturned only in one direction by the action of the engine,wc have a spiral spring in the box 7]/, which turns the drumback upon the return stroke. The… … iV, and (9i upon the axles of the cylinders G G and /*/*„ andthus turns them in opposite directions. Since this axle,during one revolution of the engine, turns through a cer-tain angle and back again, the paper strip unrolls from PPupon G G and back from 6 6^ to PP, and the pencil Z de-scribes a…
