A manual of the mechanics of engineering and of the construction of machines. Designed as a text-book for technical schools and colleges, and for the use of engineers, architects, etc. (1878)
Weisbach, Julius Ludwig, 1806-1871, Du Bois, A. Jay (Augustus Jay), 1849-1915, Buel, Richard H. (Richard Hooker), b. 1842 · New York. J. Wiley & Sons, 1878- · leaf 419

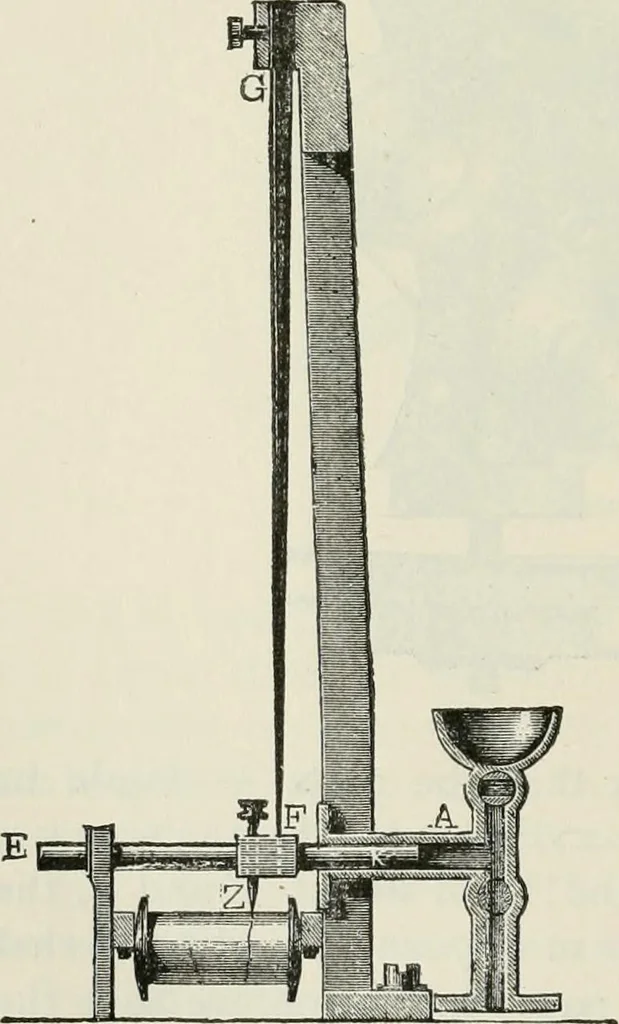

ght springshave been applied, according toPoncelet, instead of spiral springs.The arrangement of such an indicatoris seen in Fig. 793. Here the cylinderA is horizontal and the spring EGsind.pencil Z are fastened to the rod ICE.The curve is described upon a paperstrip wound upon the drum below.… … § 492-] THE STEAM ENGINE. 407 Fig. 793rt QAshton and Storeys power meter, Fig. 793^, is a continuous indicator,which measures the effective pressure at every instant, and multiplying t.iispressure by the pistonspeed, by means of anintegrating apparatus,records the power on adial. It is thus…
