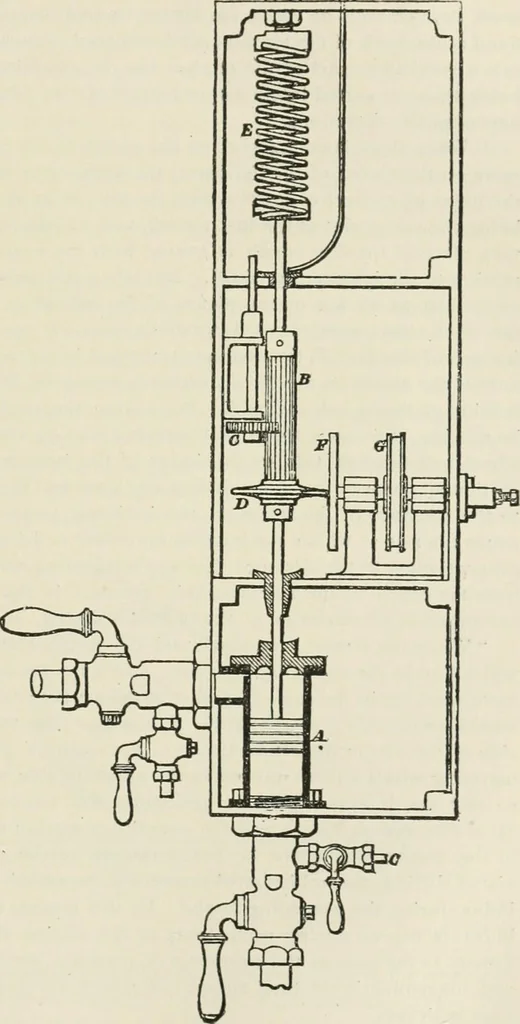

, C, which drivesthe index on the regis-tering dial of the instru-ment. On the lowerend of the long, loosepinion is fixed a wheel,Z>, called the integrat-ing wheel, having asmooth rim with arounded edge. To theupper end of the pis-ton-rod is attached aspiral spring, E, whichacts like the… … 408 HEA T, STEAM, AND STEAM ENGINES. [§ 492. which is constantly pressed against the rim of the integrating wheel D, bymeans of a light spring bearing against the end of the shaft ; the pressure ofthe spring is sufficient to cause any motion of rotation in the disc wheel F iobe transmitted to the…
