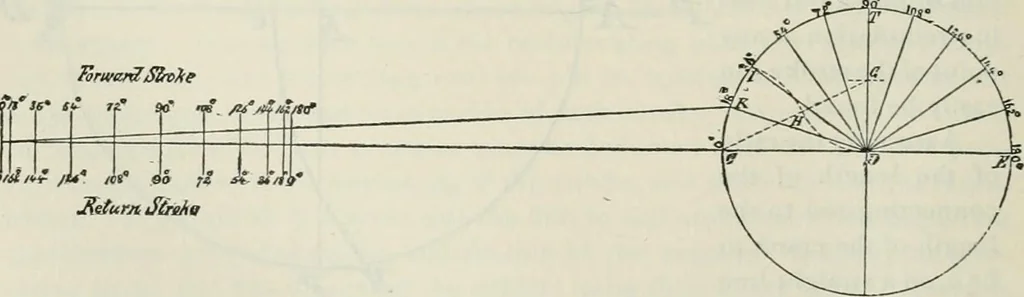

connecting-rod with the guides at this point, the component of thispressure transmitted through the connecting-rodto the crank-pin is /* x Sec.a ;and resolving this force into two components respectively parallel to andat right angles with the position of the crank, the component of rotative… … Draw a circle to represent the path of the crank, with a radius D C, Fig.8o6/5, equal to the length of the crank, and divide this circle into any number §495-] THE STEAM ENGINE. 425 of equal parts—in the present instance 20. (A convenient method of effectingthis division is shown in the figure.…
