A manual of the mechanics of engineering and of the construction of machines. Designed as a text-book for technical schools and colleges, and for the use of engineers, architects, etc. (1878)
Weisbach, Julius Ludwig, 1806-1871, Du Bois, A. Jay (Augustus Jay), 1849-1915, Buel, Richard H. (Richard Hooker), b. 1842 · New York. J. Wiley & Sons, 1878- · leaf 439

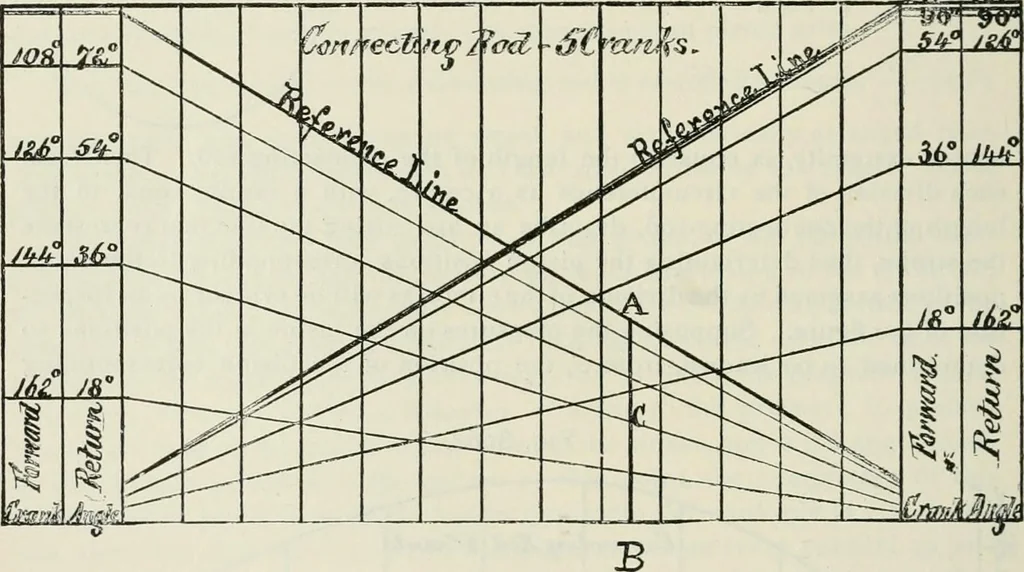

rected at the points ofdivision the rotative pressures previously constructed, a curve can be passedthrough the extremities of the ordinates, which will represent tlie rotativeefifect of a given pressure on the piston at every point of the revolution. A diagram for determining the rotative effect… … line. Fig. 8o6(», any multiples of a given piston pressure and the correspond-ing rotative effects for various crank angles, and connect each pair of pointsby a straight line. Then it is evident that for a pressure represented by astraight line of any length within the limits of the diagram, the…
