A manual of the mechanics of engineering and of the construction of machines. Designed as a text-book for technical schools and colleges, and for the use of engineers, architects, etc. (1878)

Weisbach, Julius Ludwig, 1806-1871, Du Bois, A. Jay (Augustus Jay), 1849-1915, Buel, Richard H. (Richard Hooker), b. 1842 · New York. J. Wiley & Sons, 1878- · leaf 79

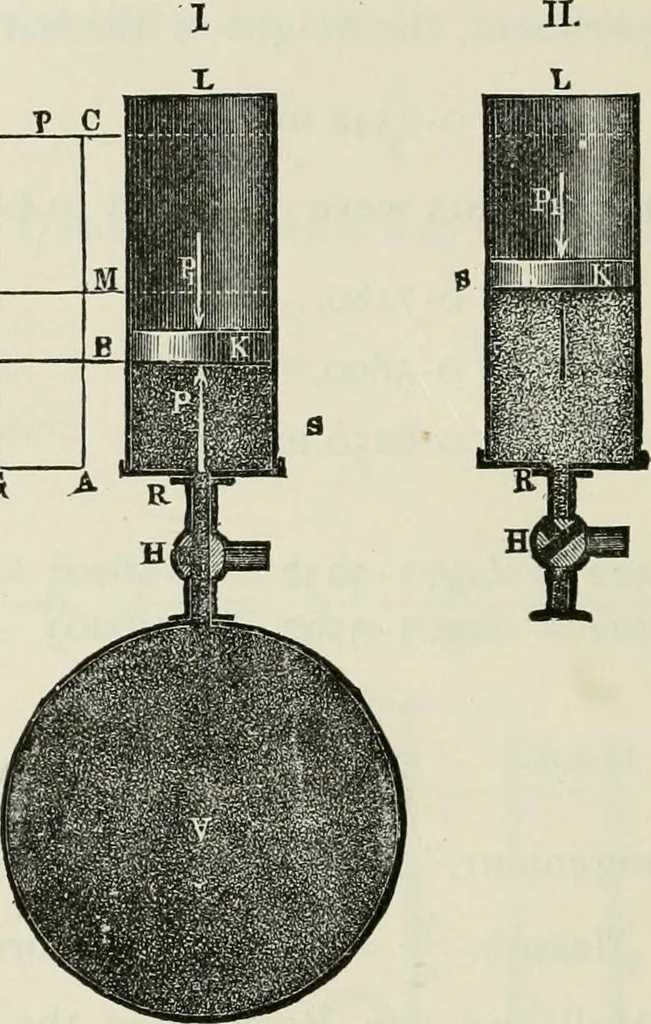

An illustration from A manual of the mechanics of engineering and of the construction of machines. Designed as a text-book for technical schools and colleges, and for the use of engineers, architects, etc., 1878, leaf 79 — haspassed over a certain distance A B = s, then the mechani-cal work performed is / s, and is graphically representedby the rectangle ABED. 66 HEAT, STEAM, AND STEAM ENGINES. [§ 378. If the communication between the cylinder L R and thereservoir V is closed by turning the cock //, as is…
