Manual of cardboard construction for third and fourth grades (1902)
Kunou, Charles A. [from old catalog] · [Los Angeles?] · leaf 37

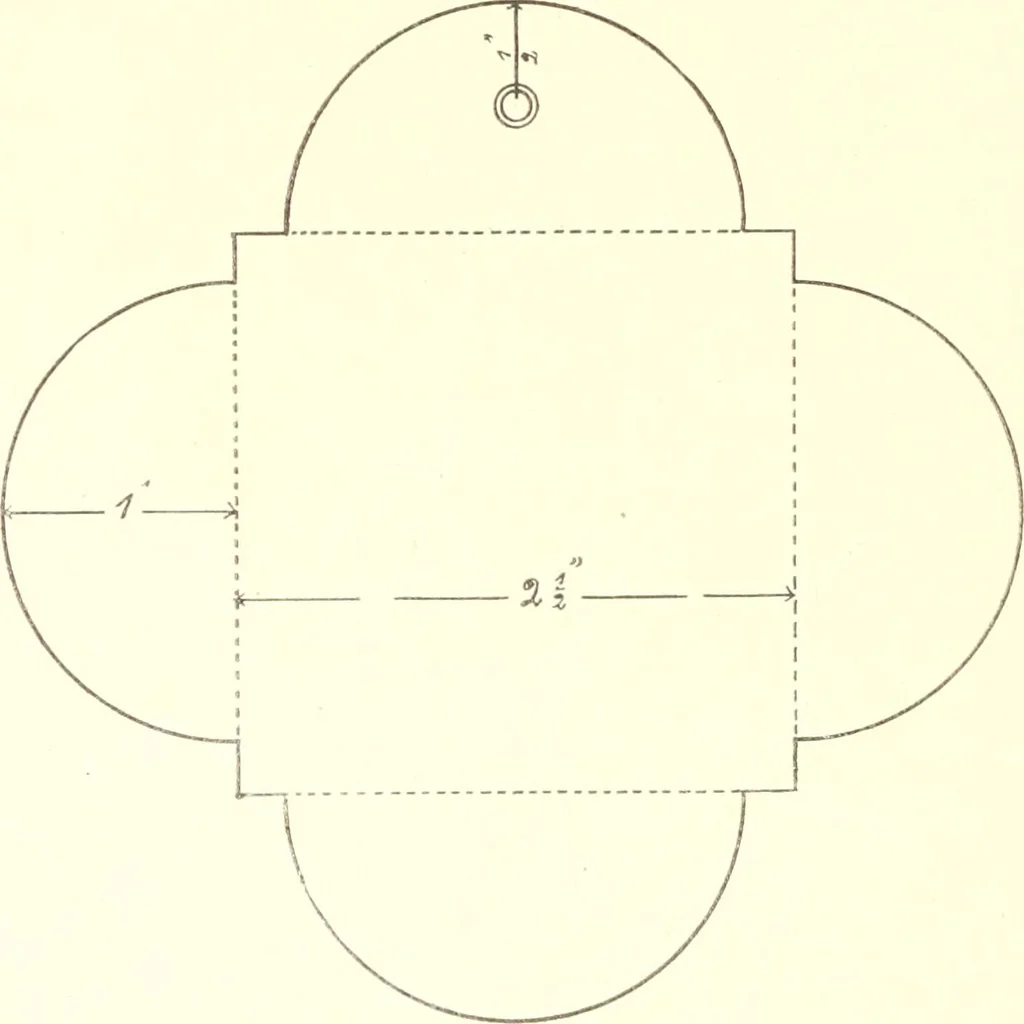

35 A3 COURSE. No. 7. Calendar Mount. (Quatrefoil.)Construction: Draw a square 21/2 sides. From middle of the sides draw semicircles 1 radius.Cut out figure with scissors. Punch hole and press in eyelet as shown in drawing.Insert a piece of floss to hang the mount on.Children may be told to procure… … -56 A3 COURSE.No. 8. Wallpocket.Construction: Draw line A. B. 3, and on it with compasses construct equilateral triangles, above and below.On the sides of triangle C construct triangles D, E.At middle points of sides, draw perpendiculars 14. and draw slanting lines, as in drawing.Draw flap lines…
Paper work
