A manual of dyeing: for the use of practical dyers, manufacturers, students, and all interested in the art of dyeing (1919)
Knecht, Edmund, 1861-1925, Loewenthal, Richard, Rawson, Christopher · London : C. Griffin · leaf 365

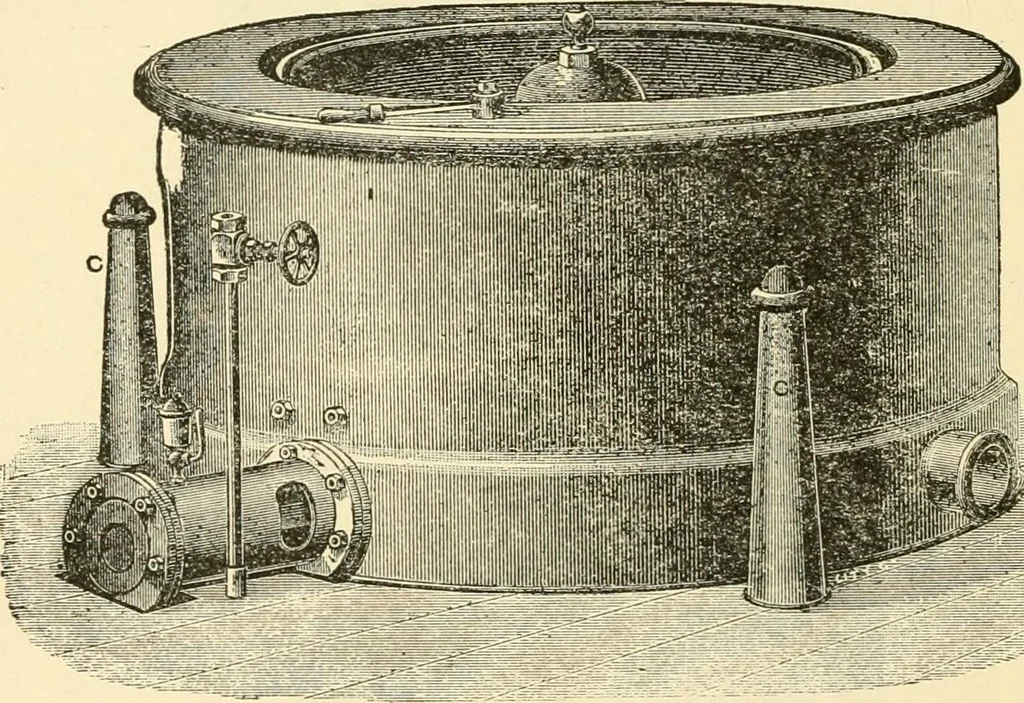

nding the whole machine onthree columns, which are not rigid, but give slightly with the oscillatorymovement of the machine. Fig. 109 shows an under-driven hydro-extractor ofthe latter description, with engine attached, constructed by Broadbent ofHuddersfield. Two of the columns, 0, on which the… … Fig, 109.—Broadbents hydro-extractor. Quite another form of hydro-extractor, used principally for pile fabrics andsometimes for worsteds, is that shown in Fig. 110. It consists of a drum, D, which can be caused to revolve at a high rateof speed, and round which several pieces stitched together end…
Dyes and dyeing
Internet Archive · UMass Dartmouth, Claire T. Carney Library · Public Domain Mark 1.0. Free to use for anything.
