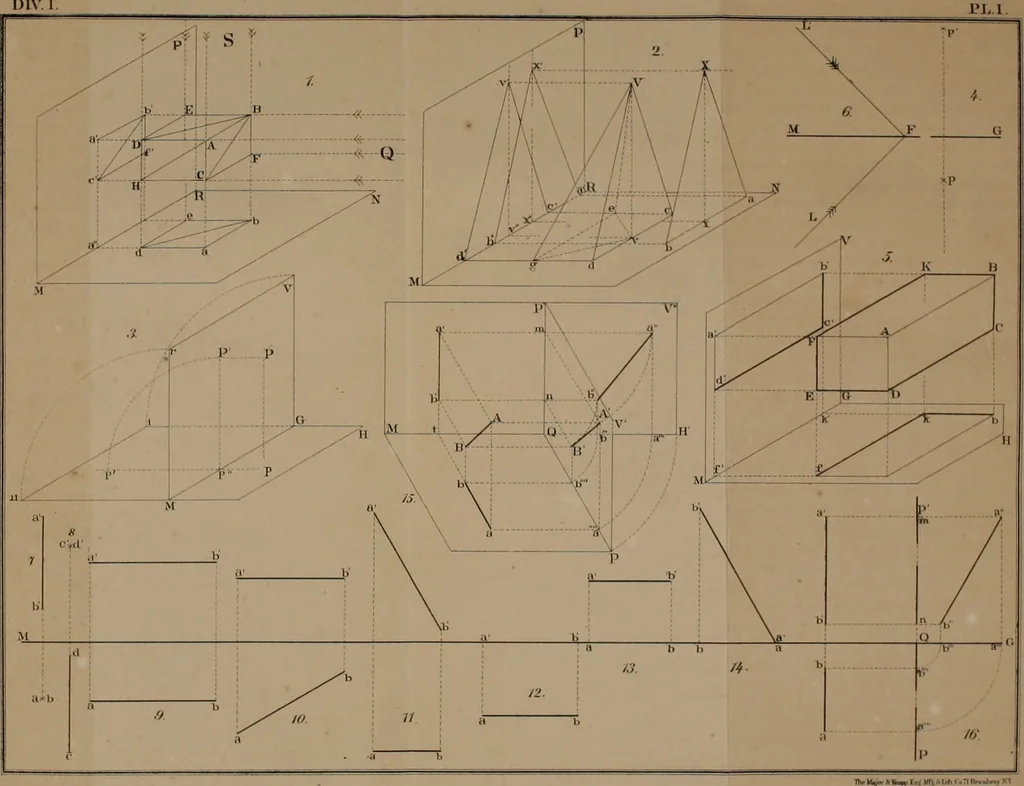

ELEMEJ4TARY INTERSECTIONS. 25 Let AB—ah\ the longer axis of the curve, and vvhich is paiallelto the vertical plane of projection, be taken as the axis of revolu-tion. The curve may then be revolved till parallel to that plane,when its real size and form will appear. Then, at c, c?, &c.,…
