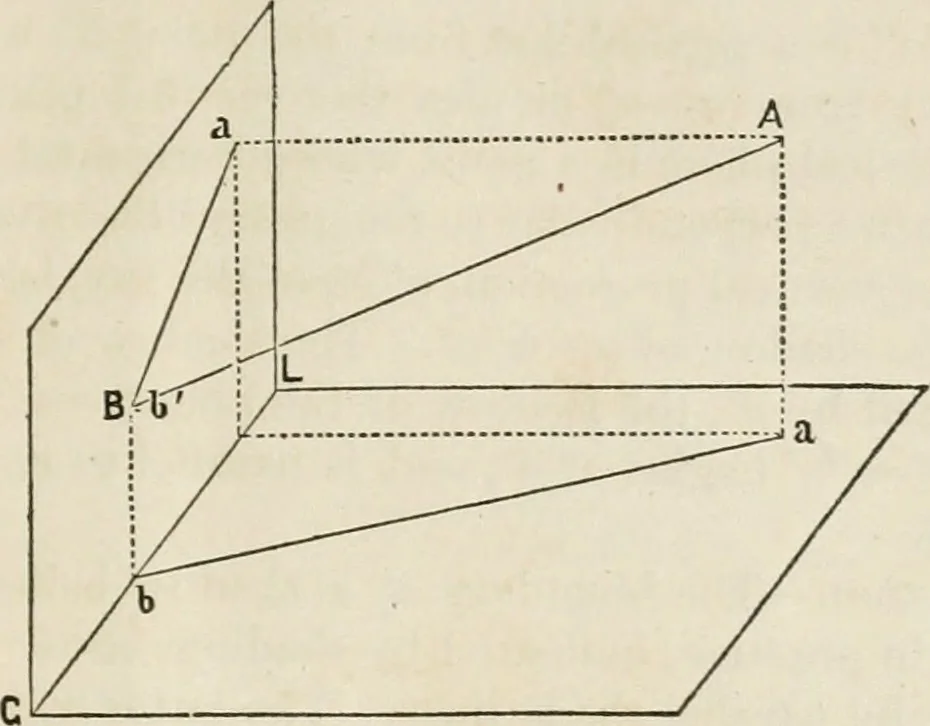

(Prin. 3=), in the perpen-dicular, hb\ to the ground line at b. That is, b is the intersectionoibb with ab. The student, in advancing through the following problems, willnow be prepared to note the point 5, PI. YIIL, Fig. 83 ; the pointb, Fig. 84 ; the point d. Fig. 85, and the points 2> and g,… … Fig. 5.
