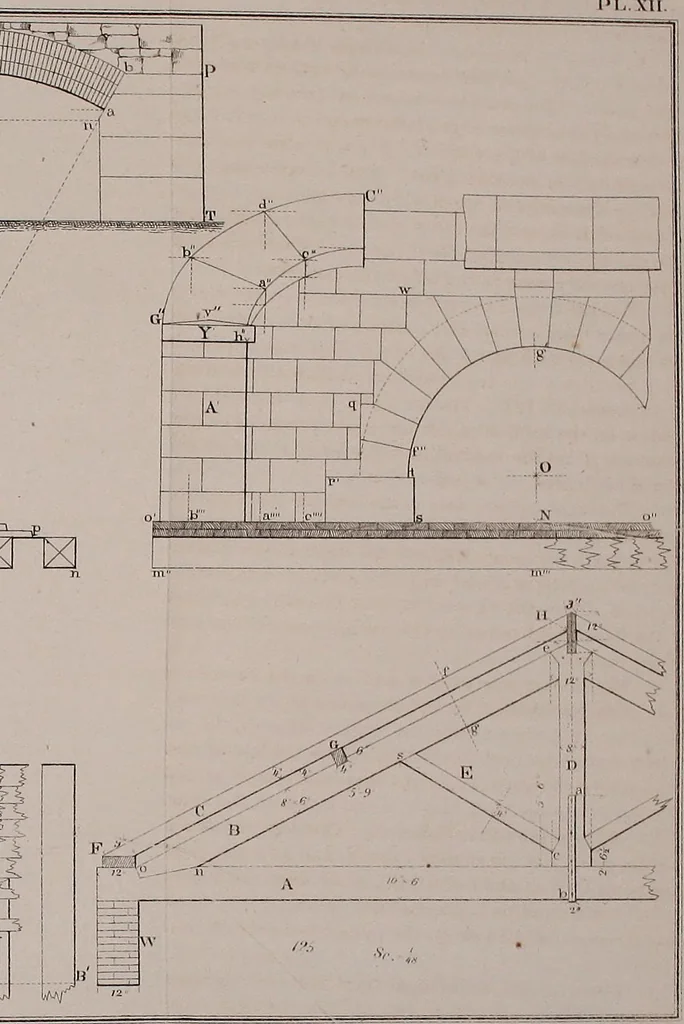

WOODEN- STRUCTURES. 113 10°. This flat topped tower also casts a shadow on the side of theroofed tower. The right back corner, H—I, of the top, casts theshadow hh on the side of the roofed tower, through which theshadow line, hx is drawn, parallel to the line H—HT which castsit. The right hand top…
