A manual of elementary geometrical drawing, involving three dimensions. Designed for use in high schools, academies, engineering schools, etc. : and for the self-instruction of inventors,artizans, etc. ... In five divisions .. (1867)
Warren, S. Edward (Samuel Edward), 1831-1909 · New York : J. Wiley and son · leaf 94

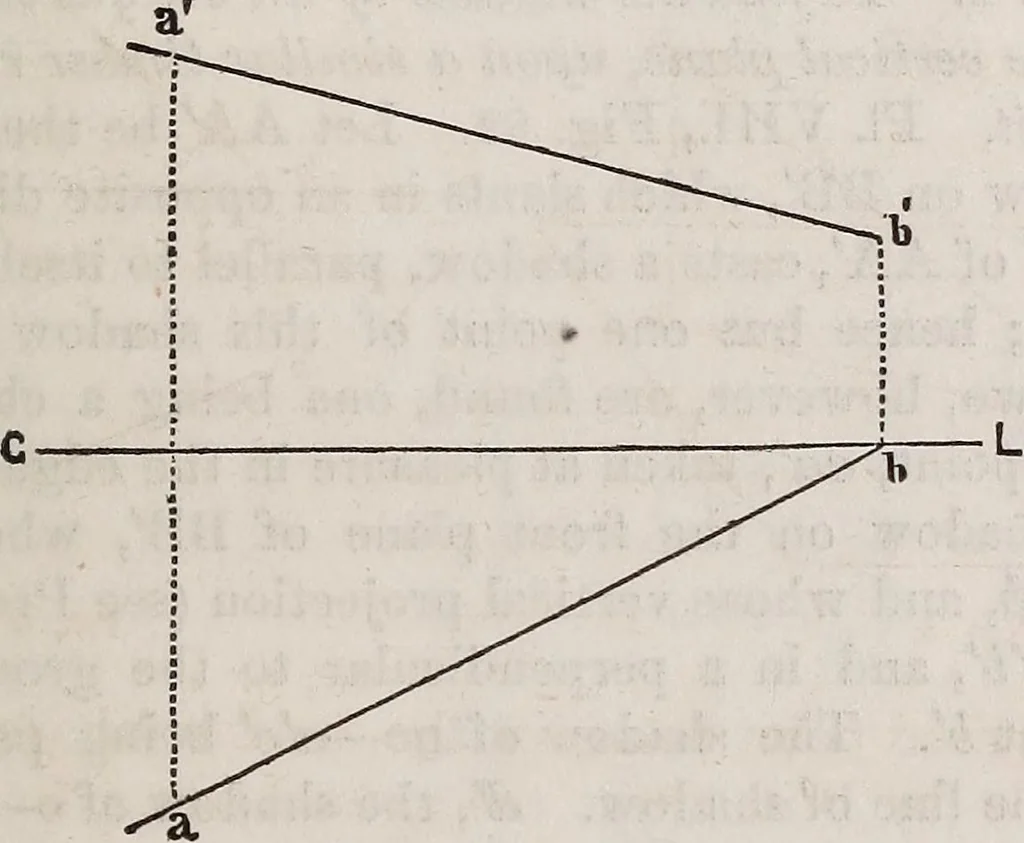

Fig. 5. … Fig. 6. pierces the vertical plane ; b being the intersection of bb\ a per-pendicular to the ground line from b, where the horizontal projec-tion ab intersects it; and ab, the vertical projection of the givenline. And the point b, Fig. 81; the points b and d, Fig. 82 ; thepoint O, Fig. 86 ; the…
