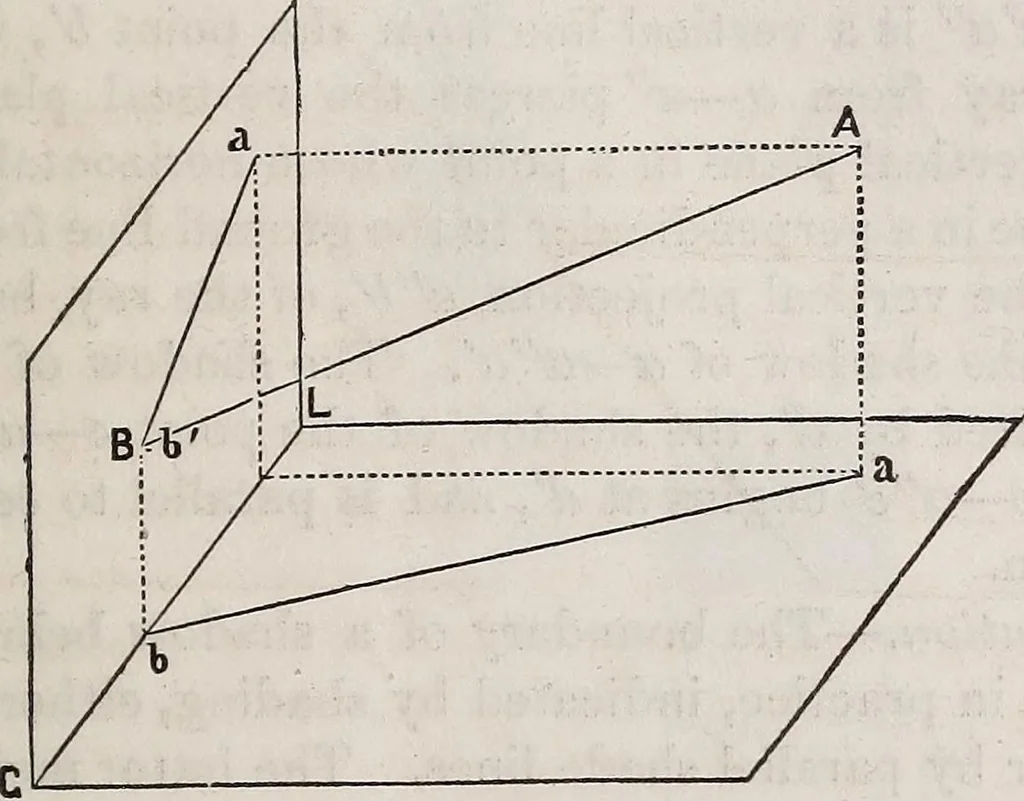

by (Prin. 3°), in the perpen-dicular, bb\ to the ground line at b. That is, b is the intersectionof bb with ab. The student, in advancing through the following problems, willnow be prepared to note the point b, PL VIII., Fig. 83 ; the pointb, Fig. 84 ; the point d, Fig. 85, and the points p and g,… … Fig. 5.
