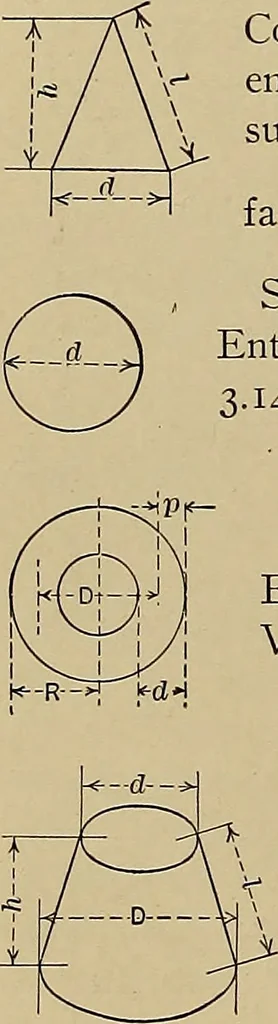

Cylinder.Convex surface = circumference Xheight. Entire surface = area of two ends+ convex surface. Volume = area of one end X height. 26 A MANUAL OF MECHANICAL DRAWING. … Cone.Convex surface = i tt d 1 ^= circumfer-ence of base X i slant height. Entiresurface = area of base + convex sur- 0.7854 d^ h face. Volume = 3 . Sphere. Entire surface = 4 ;r r^ or tt d^ or d^ X 3.1416. Volume = 0.5236 d*. Annulus.Entire surface = 4 ;r- Rr = 9.8696 Dd.Volume ^ 2 TT- Rr= =…
