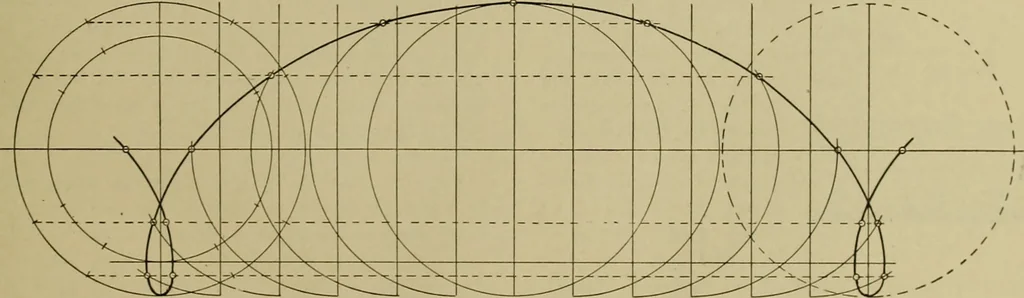

Fy&. 3 O. … /7<?. J/. 83 84 A MANUAL OF MECHANICAL DRAWING. Plate 23. The Helix. Cut from a piece of thin paper,the right-angled triangle, CAB(Fig. 32), having its base or side,A B, ij inches long and the side,A C, 3.1416 inches long. If thistriangle be wound around acylinder one inch in diameter, withits…
