A manual of weave construction; a systematic arrangement and explanation of the foundation and derivative weaves for harness looms (1903)
Kastanek, Ivo, Dale, Samuel S. (Samuel Sherman), b. 1859, tr · Boston, Guild & Lord · leaf 35

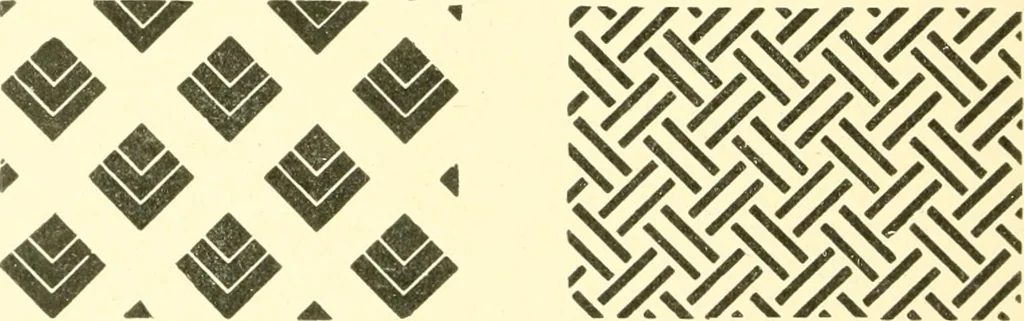

GD авваiGlIGOвавв ■ GGQ jBasB IGGGD авва JGO вавв вавв MGD Fig. 83. FIGURED PLAIN WEAVES. Figures are formed l:)y floats on a plain weave in thesame way as with figured ribs. First, the plain weave ismarked on a draft covering the number of threads inthe pattern: then the motive, Fig. SQa, is… … Fig. 89a, Fig. 90a. If the figure is to be formed by filling floats, risersmust be removed instead of added. Fig. 88 shows a draft containing both warp and fill-ing floats. Figs. 84 to 90 are other examples of figured plainweaves. Figs. 84a, 87a and 88a show cloth woven with Figs.84, 87 and 88…
Weaving
