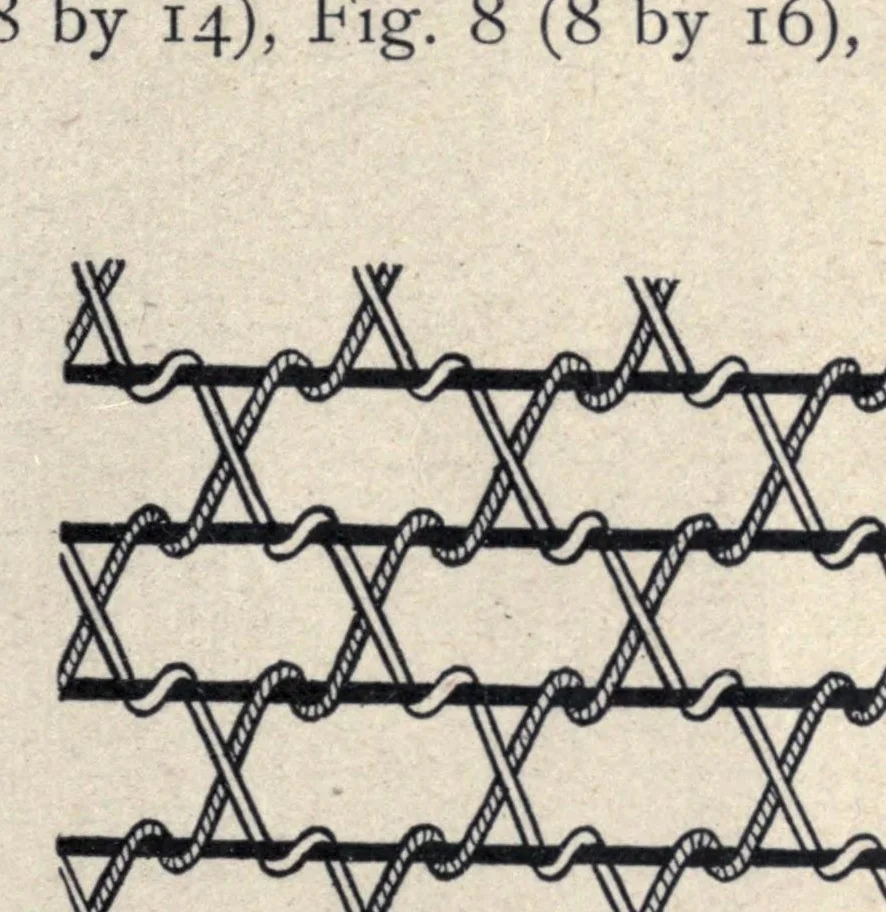

INTRODUCTION At the intersection of a warp and a filling thread, un- less otherwise stated (X), (•), (II), or (=)", indicate that the warp is above the filling, and a white square that the warp is under the filling. … Fig. 7 Fig. 6. Fig. 8. Fig. 9. The ratio of the number of upright lines to the number of horizontal lines per inch depends upon the threads of warp and filling per inch in the goods. In most cases design paper with an equal number of lines per inch in each direction is used.
