Kilbon, George B. (George Baldwin) · Boston, Lee and Shepard · leaf 91

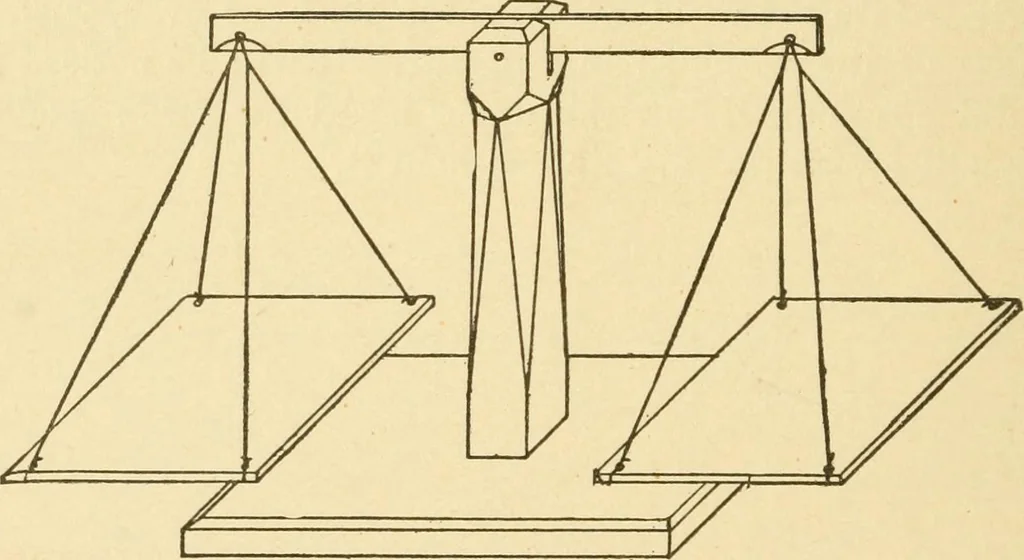

ard wood needs to be countersunk for thescrew-head, while if soft wood it does not. 80 ELEMENTAE Y TFOOD WORK. LESSON XIV. TO MAKE A PAIR OF SCALES. It is both profitable and interesting to close a series ofelementary lessons by making some project or article of use.This lesson will describe one… … Fig. 168. Fig. 169 shows three orthographic views of it, one-fifth size.This would make the base a, 8 in. X 4 in. X \ ii^-; the post h,7 in. X I in- X | in.; the beam c, 10 in. X h in. X i in.; andthe pans d, each 4 in. X 4 in. X I in. Fig. 170 is a sectionalview of a portion of the base, full…
Woodwork (Manual training)
