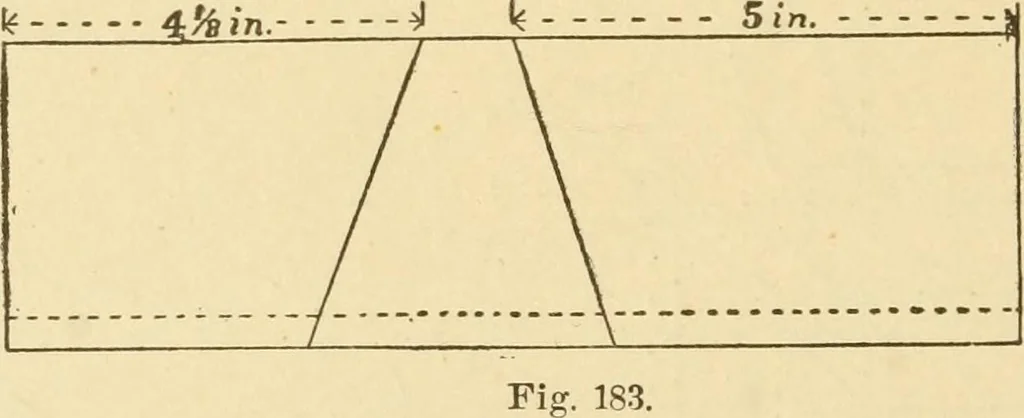

Fig.182. Set the bevel to this line, as in Fig. 182, and plane one edgeof the 10 in. X ^-■^^ in. board to fit the bevel so set. The work will appear as inviews of it. the outlines of Fig. 183, which shows two … On the waste board, Fig. 181, make a second standard angleby making A E = 1 in. and A F = SjV in., and drawing E F.Set the bevel to this second standard angle, use it to draw thetwo bevelled lines shown in Fig. 183, continue these lines TO MAKE A BEVELLED BOX OB CABD-BECEIVEB. 87 square across the…
