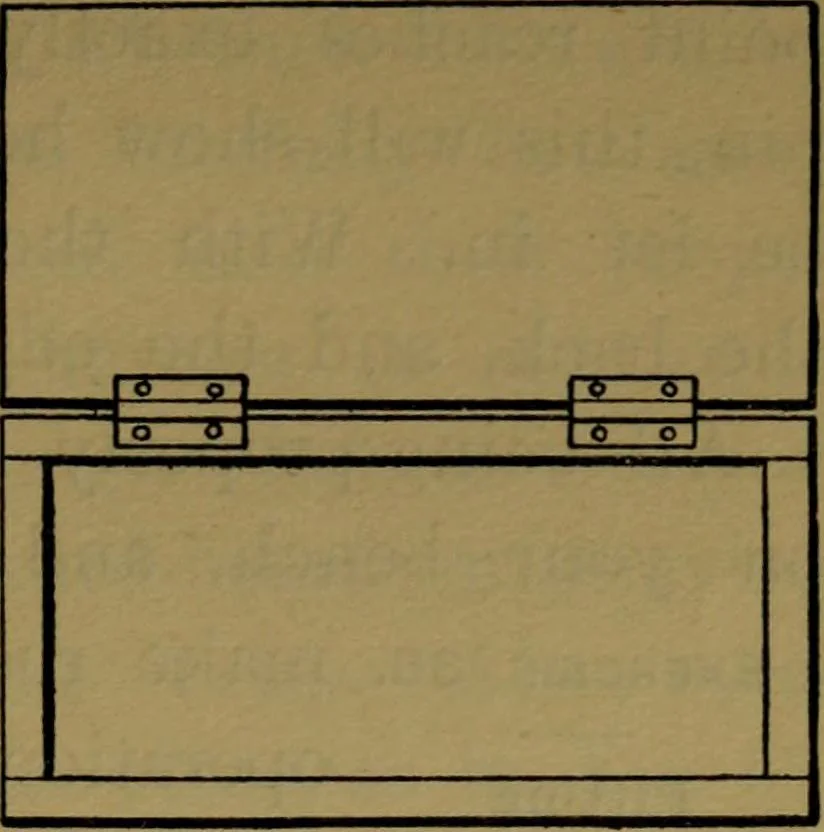

onthe edge the width the hinges are to occupy.This is not the full width of the hinges, butonly the distance from the center of the pinto the edge of the hinge, because, when the 140 57., Wood - Working. 141 hinge is fastened on, it and the box shouldappear as in Fig. 59, the center of the… … Fly.Jtf. back, as in Fig. 58, without the hinges, and transfer the four cross-marks to the top, and then, with the square, mark thelength of the hinges,and with the gaugemark their width,just as on the edge.Next, mark thedepth to which the hinges are to be sunk.In order that they may let the top…
