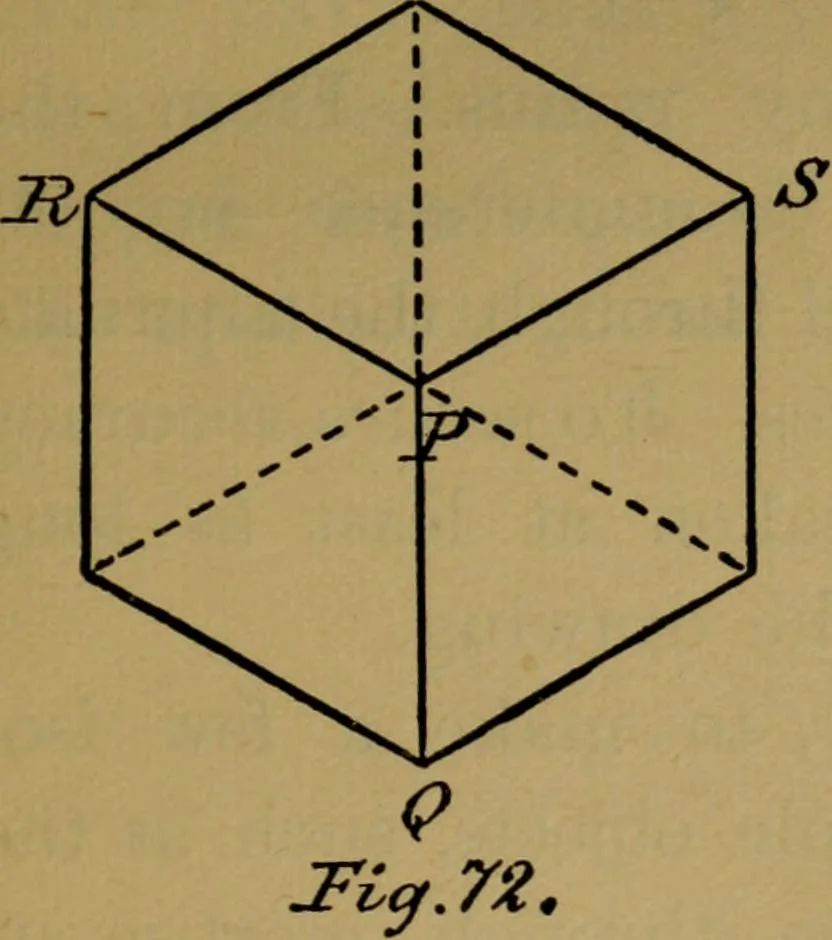

n this system is thusseen to be extremelysimple: that of a bodywith unequal dimen-sions is not difficult,provided its faces areperpendicular to eachother. Thus, if it isrequired to represent a body of this shape whose length, breadth,and thickness are re-spectively 3, 2, and1, we have only todraw… … 151 Manual Training. the drawing as in the figure. The drawingof the three lines, or axes P Q, P R,and PS is easily accomplished, as in Fig. 74.
