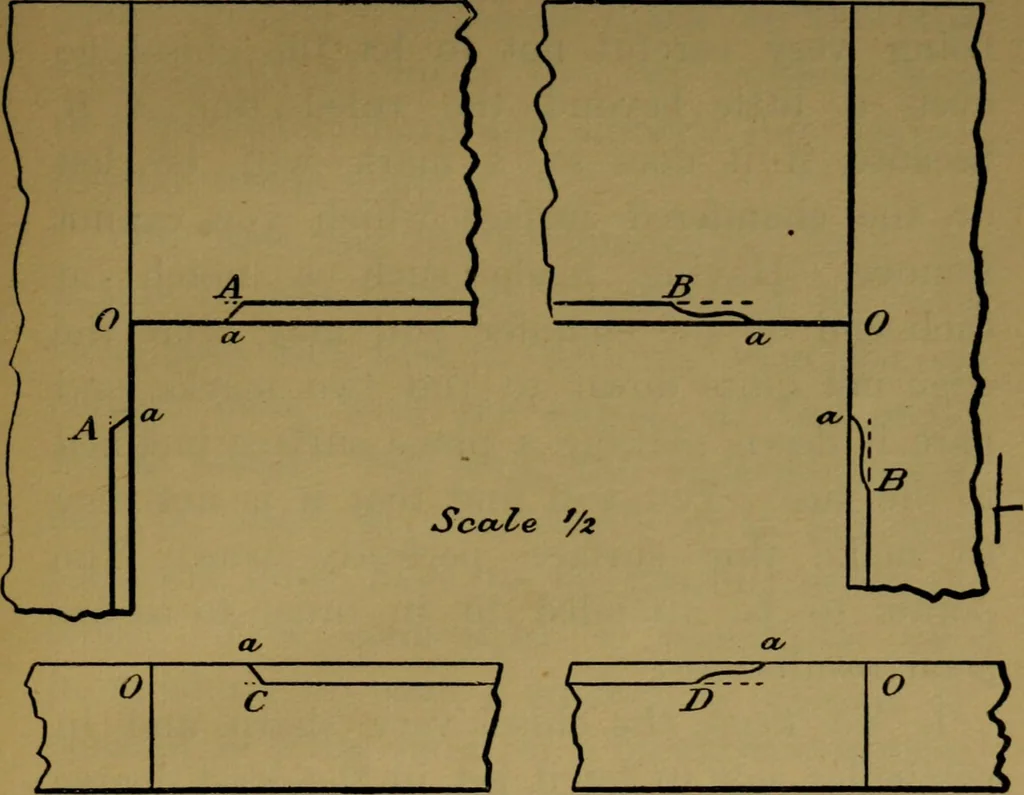

^ be terminated at eachend by a simple inclined cut, as at A and C,Fig. 82, or by an ogee, as at B and D. Forthe former, mark the point a f from 0 theinner corner of the frame, A and C one inchfrom 0, and corresponding points at the 172 Wood - Working. 173 other end of the piece. For the latter,… … JFCy. 8Z. To cnt the chamfer. First with the bev-eled end. Hold the piece in your vice; setthe chisel near a, the flat side exercise 40. towards 0, and make an inclined chamfering acut extending nearly down to frame,the ruled line, and throwing up a chip.Turning the chisel round, set it about \ be-…
