Manual training : first lessons in wood-working (1888)
Compton, Alfred G. (Alfred George), 1835-1913 · New York and Chicago, Ivison, Blakeman and company · leaf 27

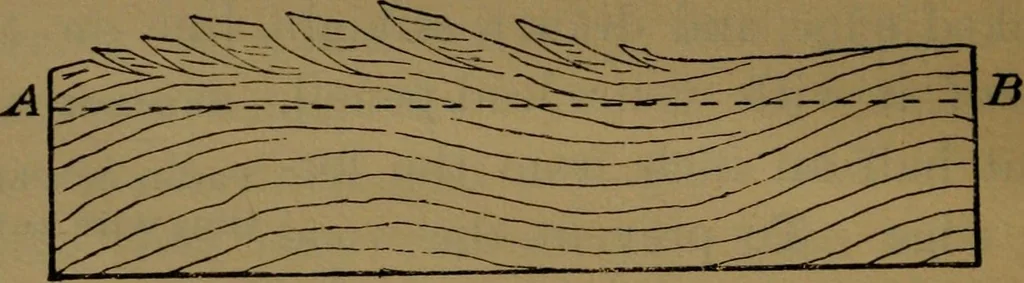

Fig.<*. grain runs as in Fig. 4. in which A B is the line to which the piece is to be pared down. 12 Manual Training. the part from A to 0, must be pared from leftto right, and the part from 0 to B from rightto left. A second precaution that may be ob-served, particularly when much wood is to… … Fig. 5. tween these cuts can be cut off, working inthe opposite direction, or from B to A. Newscores are then made and new pieces splitoff. As soon as you begin to approachthe line A B, special care must be taken tocut so that the knife shall run out ratherthan in. The operation of hewing, with…
Woodwork (Manual training)
