Manufacture of narrow woven fabrics, ribbons, trimmings, edgings, etc., giving description of the various yarns used. The construction of weaves and novelties in fabric structures, also descriptive matter as to looms, etc (1917)
Posselt, E. A. (Emanuel Anthony), 1858-1921 · Philadelphia, Textile Pub. Co · leaf 153

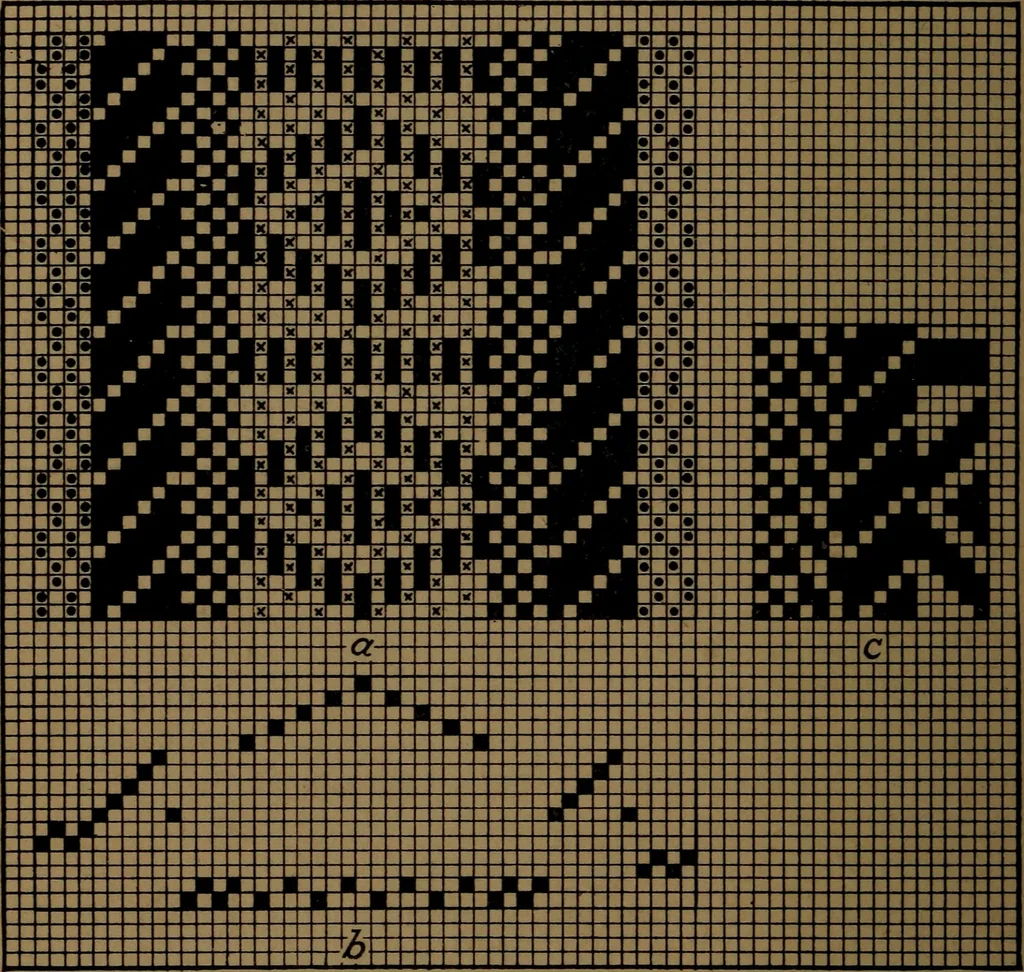

weave is put next to the plain(i.e., on harnesses 3, 4, 5, 6) ; the -, 5-harness twill isdrawn next on harnesses 7, 8, 9, 10 and 11, followedwith drawing the extra figure warp-threads, and whichinterlace very loosely, on harness 12 to 16, inclusive. 144 Manufacture of Narrow Woven Fabrics. This… … Fig. 182 the one raised the least. For this reason place thethreads which interlace the most, hence have to standthe most strain during shedding, on the harnessesraised the least high, i. e., nearest to the reed. The harness chain is shown at c, calling for 16-harness and 20 picks, obtained from…
