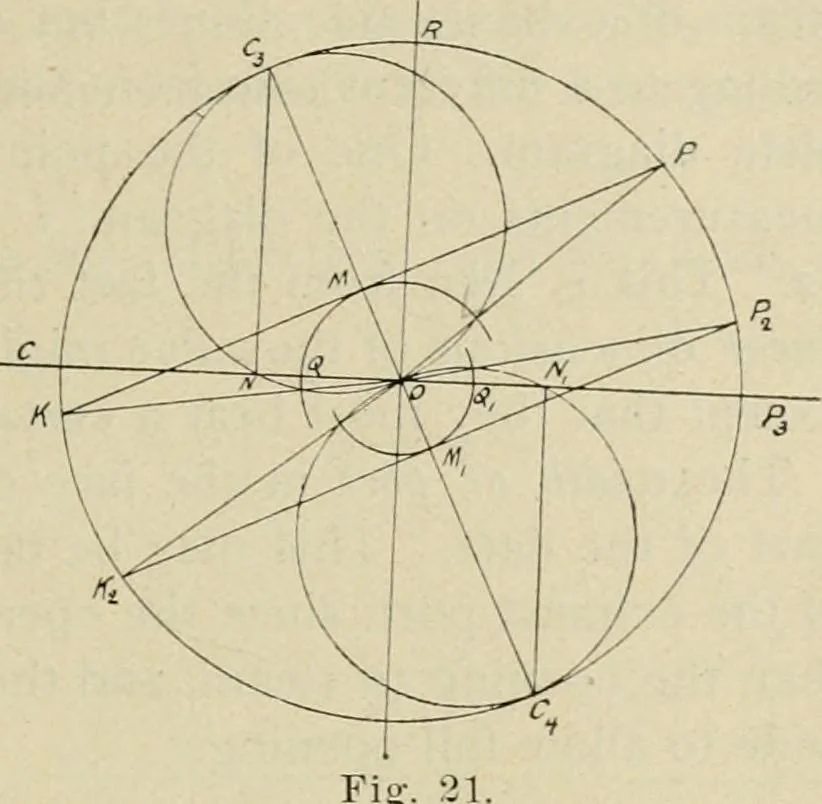

ram, whenever the lap circle is so small that it does notgive a sharp intersection with the valve circle. The foregoing has referred to the steam side of the valveparticularly. The exhaust side is considered in the same way;but, with the piston making the return stroke, from P^ to C.The diagram… … points of release and compression correspond respectively to thesteam lead and the points of admission and cut-off, and are ob-tained in the same way. Fig. 21 shows a completediagram, which gives thefollowing information: 1. Admission at K, givenby angle KOC. 2. Ciit-of¥ at P, given byangle POC. 3.…
