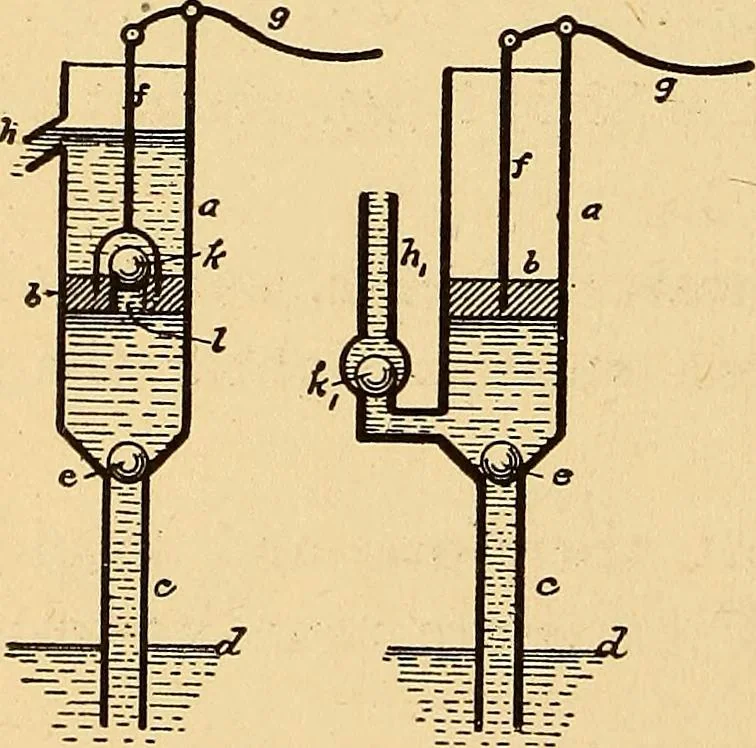

is shown, and in Fig.29B a simple force pump isshown. Each consists of apump cylinder, a; a recip-rocating piston or plunger, b;a suction pipe, c, leading to apoint below the water surface,d; a suction valve, e, to per-mit water to flow from thesuction pipe to the cylinder,but not to return; a… … FI6.29A F1Q.23B- Pumps 75 plunger; the other, hi, at the bottom of the force pumpcylinder and below the plunger; discharge valves, k, k\,respectively, are provided—the one, k, for the lift pump,and the other, ky, for the force pump; a passage, /, throughthe lift pump plunger is controlled by the…
