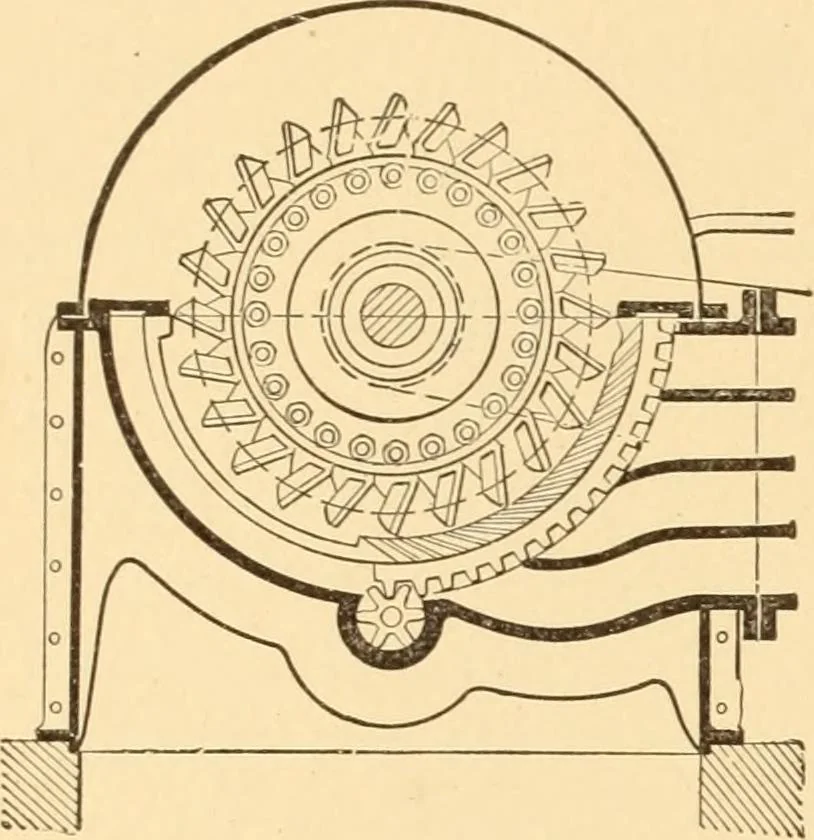

to match the buckets. The water flow is governed by the opening orclosing of a sector slide valve controlled by a fly governor.300. Elevation, showing position of nozzle and buckets. 128 HYDRAULIC POWER AND APPLDVNCES. … 301. MULTINOZZLE TURBINE or impact wheel. German type. Thenozzles are in a segment and closed forregulation of power by a sliding seg-ment on the outside, operated by apinion with a controlling wheel outsidethe case. The water strikes the face ofthe buckets and is discharged at theirsides. 302.…
