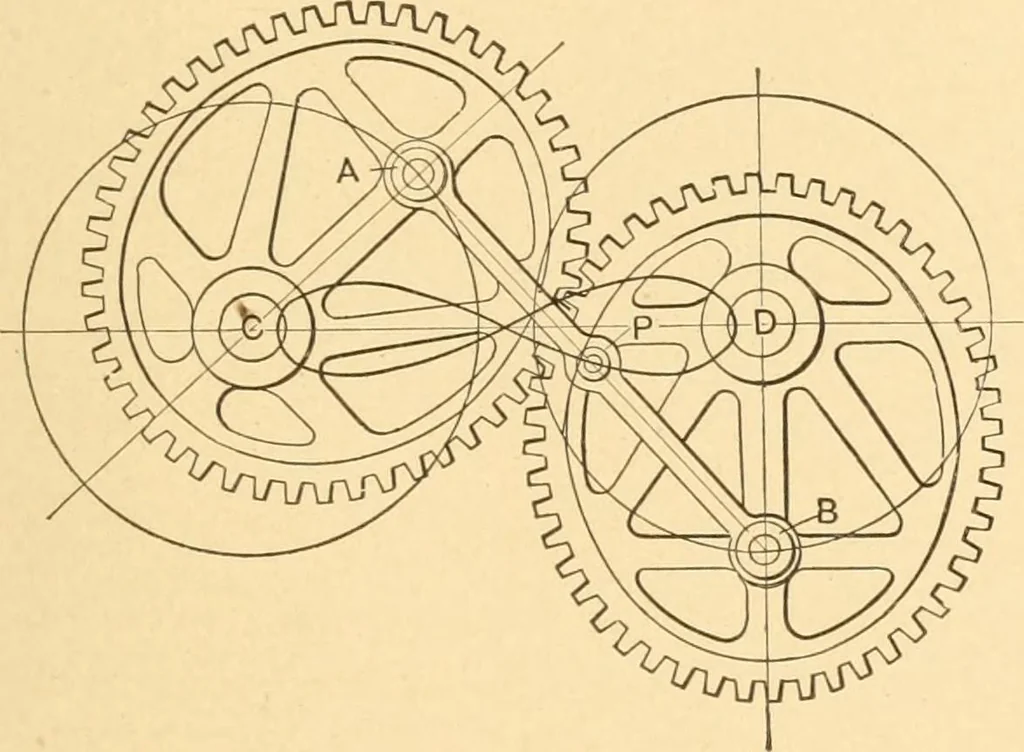

607. INTERRUPTING CAM-GEAR MO-TION. B, the driver. The motion of A isfrom fast to slow or slow to fast, with a momen-tary stop as the long teeth match at C and C.The stop motion is governed by the form of thecurves of the long teeth at C and C. … 608. ELLIPTIC LINK-AGE from elliptic gear.C and D are centers of revo-lution of the elliptic gears,and A, B, their opposite focii,to which the link A, P, B,is attached. P, the pencil,which on moving from thecenter of the link, will pro-duce a great variety of curves. 609. CIRCULAR FROMRECIPROCATING…
