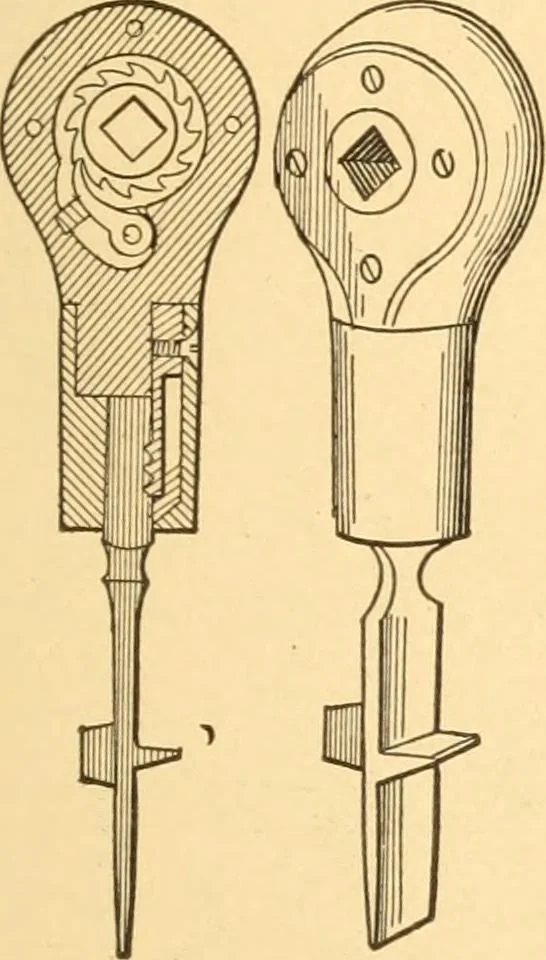

5. LEVER NIPPERS. A labor-saving device in the hands of the wireworker. Its lever advantage is readilyseen by inspection of the detailed partsas a compound lever, which doubles thecutting power of the nippers. SECTION 11. TRANSMISSION OF POWER. Section II. TRANSMISSION OF POWER. … 6. UNIVERSAL SCREW DRIVER. The handle has a ratchet socket in which thethree-point blade may be inserted for greaterpower or to accommodate special conditions. 7. A section showing the ratchet and pawlsocket for holding the square shank of the bladefor corner work.
